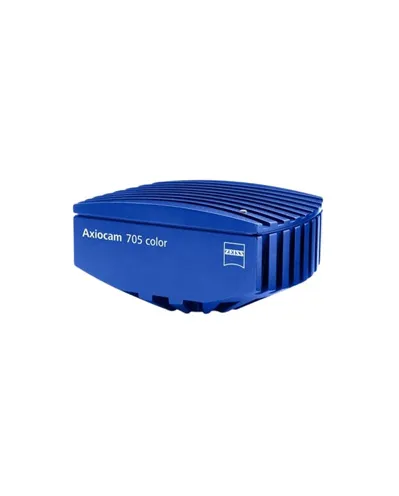

This flexible 5 megapixel scientific color camera strikes the perfect balance of speed and resolution. Delivering more than 60 frames per second at full 5 megapixel resolution, this camera captures even the most dynamic processes without compromising image resolution. Subsampling or sub-region readout accelerate your acquisition speed to hundreds of frames per second.
Spesifikasi: Sensor type: Sony CMOS color image sensor, global shutter architecture Sensor size: Image diagonal 11.1 mm, equivalent to 2/3” sensor format (8.5 mm× 7.1 mm) Pixel count: 2464 (H)× 2056 (V) = 5.07 megapixel Hardware sensor subsampling: 2×2: 1232 (H)× 1028 (V) = 1.25 megapixel @ full field of view Pixel size: 3.45 μm × 3.45 μm Bit depth: 14 bit, 12 bit or 8 bit Exposure time range: from 0.1 ms to 60 s Gain: 1×, 2×, 4×, 8×, 16× Binning:1×1, 2×2, 3×3, 4×4, 5×5 (combined analog and digital binning) Dark current signal: < 0,5 e/pixel/s at sensor temperature 18 °C Frame rate: 30 fps live image H × V (ROI) Frame Rate (fps) 2464 × 2056 60 1920 × 1080 115 1232 × 1028 173 (2 ×2 subsampling, full field of view) 1024 × 1024 121 512 × 512 235 1920 × 256 436 High dynamic range (HDR) mode: Extended dynamic range 1:25.000 Cooling system: Active thermoelectric cooling, regulated sensor temperature 18 °C Spectral sensitivity: Approx. 400 nm – 720 nm, anti-reflection coated infrared (IR) filter Automatic features: Automatic exposure time optimization Optical/mechanical interface: C-Mount Dimensions and weight: 10.8 cm× 7.8 cm× 4.3 cm (2.3"× 3.2"× 1.7"), 580 g Order number: 426560-9050-000
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
