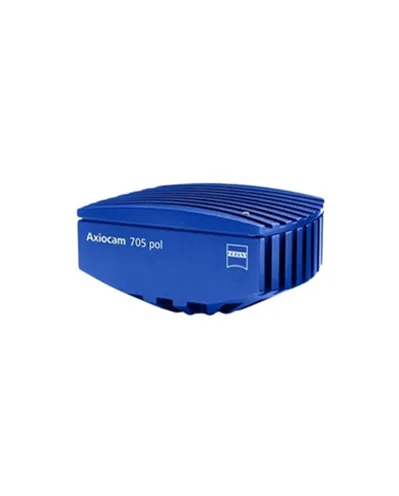

Axiocam 705 pol is your scientific 5 megapixel camera with a polarization filter mask enhanced sensor. A single image is sufficient to capture different polarization parameters such as angle of polarization, degree of polarization together with the image content. No special accessories such as an analyzer in your microscope are required. You simultaneously acquire polarization effects with one single exposure over the field of view which speeds up your imaging as no analyzer needs to be adjusted.
Spesifikasi: Sensor type Sony: CMOS image monochrome sensor, global shutter architecture Polarisation Filter: On chip polarization filter mask with 0°, 45°, 90°, 135° transmission directions in 2×2 pixel arrangement Sensor size: Image diagonal 11.1 mm, equivalent to 2/3” sensor format (8.5 mm × 7.1 mm) Pixel count: 2464 (H) × 2056 (V) = 5.07 megapixel Pixel size: 3.45 μm × 3.45 μm, 6.9 µm effective pixel size based on polarization filter cell size Bit depth: 14 bit, 12 bit or 8 bit / pixel Exposure range: from 0.1 ms to 60 s Gain: 1×, 2×, 4×, 8×, 16×, Binning: 1×1 Dark current signal: < 0,5 e/pixel/s at sensor temperature 18 °C Frame rate: 25 fps live image (in monochrome or fast color mode) H × V (ROI) Frame Rate (fps – framerates only in monchrome or fast color coding) 2464 × 2056 60 1920 × 1080 115 1024 × 1024 121 512 × 512 235 1920 × 256 436 High dynamic range (HDR) mode: Extended dynamic range 1:25.000 Cooling system: Active thermoelectric cooling, regulated sensor temperature 18 °C Spectral sensitivity: Approx. 350 nm – 1000 nm, protection glass (coated) Interfaces: USB 3.0 (data & power) and USB 2.0 (power only) Trigger ports: Trigger-in, trigger-out, status readout Optical/mechanical interface: C-Mount Dimensions and weight: 10.8 cm × 7.8 cm × 4.3 cm (2.3" × 3.2" × 1.7"), 580 g Order number: 426560-9070-000
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
