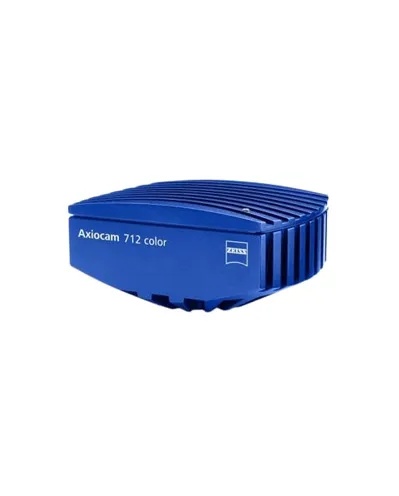

This 12 megapixel scientific grade camera combines a large image sensor, small pixel size, precise color rendition and fast imaging speed. The CMOS sensor delivers more than 20 frames per second with a 17.5 mm diagonal large field of view. You can now acquire large specimen regions quickly and with uncompromised image quality. The large field of view reduces the number of tiles required to image largest samples, and so drastically accelerates tiling experiments.
Spesifikasi: Sensor type Sony: CMOS image color sensor, global shutter architecture Sensor size: Image diagonal 17.5 mm, equivalent to 1.1" sensor format (14.1 mm× 10.4 mm) Pixel count: 4096 (H)× 3008 (V) = 12 megapixel Hardware sensor subsampling: 2048 (H)× 1504 (V) = 3 megapixel @ full field of view Pixel size: 3.45 μm × 3.45 μm Bit depth: 14 bit, 12 bit or 8 bit Exposure range: from 0.1 ms to 60 s Gain: 1×, 2×, 4×, 8×, 16×, Binning: 1×1, 2×2, 3×3, 4×4, 5×5 (combined analog and digital binning) Dark current signal: < 0,5 e/pixel/s at sensor temperature 18 °C Frame rate: 30 fps live image H × V (ROI) Frame Rate (fps) 4096× 3008 23 2048× 1504 46 (2×2 subsampling, full field of view) 1920× 1080 63 1024× 1024 66 1920× 256 241 1920× 128 431 High dynamic range (HDR) mode: Extended dynamic range 1:25.000 Cooling system: Active thermoelectric cooling, regulated sensor temperature 18 °C Spectral sensitivity: Approx. 400 nm – 720 nm, anti-reflection coated infrared (IR) filter Interfaces: USB 3.0 (data & power) and USB 2.0 (power only) Trigger Ports: Trigger-in, trigger-out, status readout Automatic features: Automatic exposure time optimization Optical/mechanical interface: C-Mount Dimensions and weight: 10.8 cm× 7.8 cm× 4.3 cm (2.3"× 3.2"× 1.7"), 580 g Order number: 426560-9080-000
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
