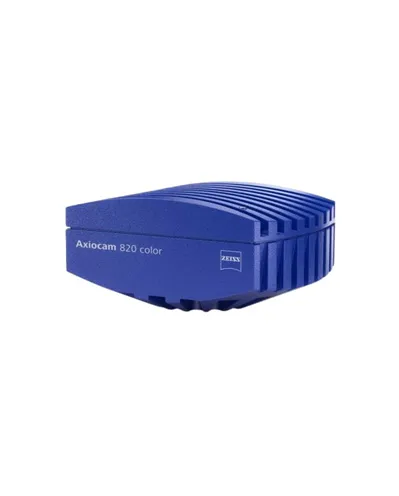

This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
Spesifikasi: Sensor Type Sony: CMOS image color sensor, global shutter architecture Backside illuminated Sensor Size: Image Diagonal 17.5 mm, equivalent to 1.1" Sensor Format Image Field 12.4 mm× 12.4 mm, square imaging area Sensor Pixel Count: 4512 (H) × 4512 (V) = 20 Megapixel HW Subsampling: 2256 (H)× 2256 (V) = 5 Megapixel, high speed full view mode Pixel Size: 2.74 µm× 2.74 µm Bit Depth: 14 bit/ 12 bit or 8 bit/ pixel Exposure Range: 0.1 ms up to 60 s Gain: 1×, 2×, 4×, 8×, 16× Binning: 1× 1, 2× 2, 3× 3, 4× 4, 5× 5 (combined analog and digital binning) Dark Current Signal: < 0.1 e-/p/s at 25°C sensor temperature HDR Mode: Extended dynamic range up to 1:25,000 Cooling System: Active cooling, regulated sensor temperature 25 °C Spectral Sensitivity: Appr. 400 nm – 720 nm, IR cut filter (coated) Interfaces Dual: USB 3.0 mage Enhancement Functions: Denoising, sharpening, shading correction, dark current compensation Automatic Feature: Optional automatic exposure time adaption Optical Interface: C-Mount Dimensions and Weight: 10.8 cm× 7.8 cm× 6.1 cm / 620g Order Number: Axiocam 820 color: 426560-9180-000
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
