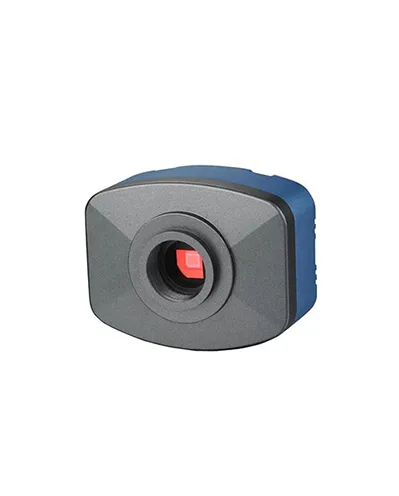

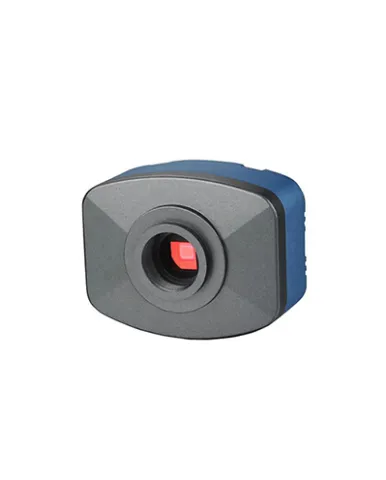

BUC2B Series USB2.0 digital cameras are mainly designed for microscopes to capture microscope images, videos and display real-time live video on your PC screen. They come with a high-resolution digital camera, built-in IR filter and user-friendly software. Adapters for all sizes of microscopes are optional. The cameras can provide high quality image and are widely used in academic and medical field for high precision and resolution image capturing and processing.
Image Sensor : 1/2.3” CMOS Sensor, Micron MT9J001 Effective Pixels : 10.0MP Resolution : 3856×2764 Pixel Size : 1.67μm×1.67μm Frame Rate : 3fps@3656×2740 - 7fps@1824×1362 - 33fps@908×672 Sensitivity : 0.44 V/lux-S(550nm) Exposure Time : 0.001-0.5 sec Dynamic Range : 56dB SNR : 43dB Color Depth : 24bit A/D 8-bit Exposure Control : Auto/Manual White Balance : Auto/Manual Scan Mode : Progressive Scan Shutter Type : Electronic rolling shutter Filter : RGB filter Lens Interface : C/CS Data Output : USB2.0, 480Mb/s Power Supply : USB2.0, 500mA Working Temperature : 0°C ~ 60°C Storage Temperature : -20°C ~ 70°C Working Humidity : 45%~ 85% Operating System : Windows 2000/XP/ Vista/Win7/Win8/Mac/Linux Size and Weight : 69mm×87mm×44mm, 220g
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
