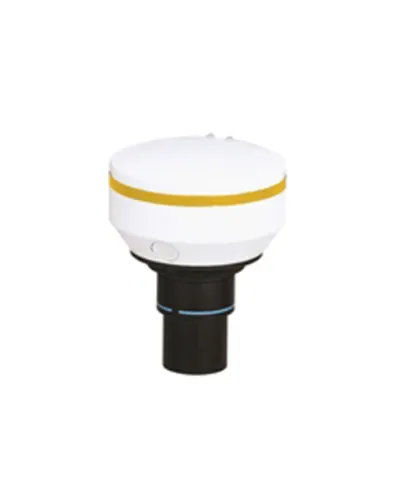

BUC2 Series digital cameras are mainly designed for microscopes to capture microscope images, videos and display real-time live video on your PC screen. Each package comes with a high-resolution digital camera, a reduction lens, a user-friendly software and a 30mm adapter. 30.5mm adapter is optional.
Image Sensor : 1/3 inch 1.3MP - CMOS Sensor Active pixels : 1280×1024 Pixel size : 5.2μm×5.2μm Frame rate : 15fps@1280×1024 Sensitivity : >1.0 V/lux-sec (550nm) Dynamic range : 61dB SNR : 43dB Shutter type : Electronic rolling shutter Operating Temperature : 0°C ~ 60°C Image Output : USB2.0, 480Mb/s Software : ScopeImage 9.0 Operating System : Windows 2000/ XP/ Vista/Win7/Win 8/Mac
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
