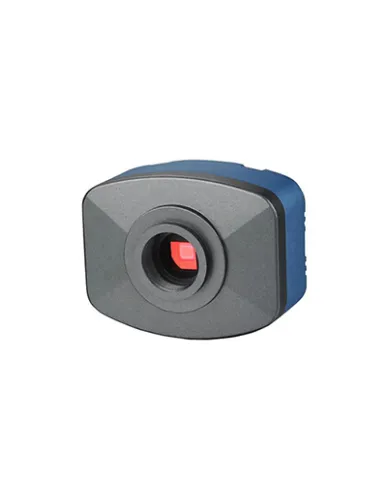

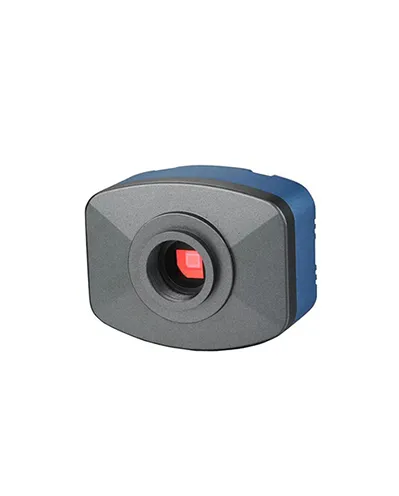

BUC2B Series USB2.0 digital cameras are mainly designed for microscopes to capture microscope images, videos and display real-time live video on your PC screen. They come with a high-resolution digital camera, built-in IR filter and user-friendly software. Adapters for all sizes of microscopes are optional. The cameras can provide high quality image and are widely used in academic and medical field for high precision and resolution image capturing and processing.
Image Sensor : 1/2.5” CMOS Sensor, Micron MT9P031 Effective Pixels : 1.3MP Resolution : 1272×952 Pixel Size : 2.2μm×2.2μm Frame Rate : 16fps@1272×952 - 46fps@632×472 Sensitivity : 1.4 V/lux-S(550nm) Exposure Time : 0.001-0.2 sec Dynamic Range : 60dB SNR : 40.5dB Color Depth : 24bit A/D 8-bit Exposure Control : Auto/Manual White Balance : Auto/Manual Scan Mode : Progressive Scan Shutter Type : Electronic rolling shutter Filter : RGB filter Lens Interface : C/CS Data Output : USB2.0, 480Mb/s Power Supply : USB2.0, 500mA Working Temperature : 0°C ~ 60°C Storage Temperature : -20°C ~ 70°C Working Humidity : 45%~ 85% Operating System : Windows 2000/XP/ Vista/Win7/Win8/Mac/Linux Size and Weight : 69mm×87mm×44mm, 220g
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
