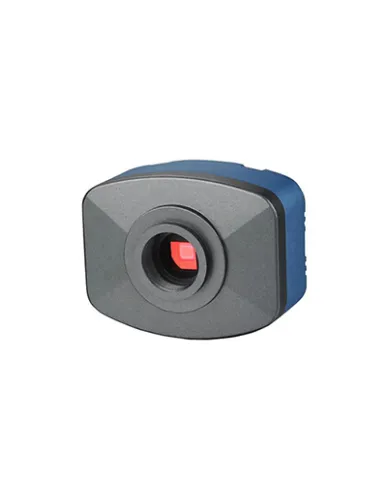

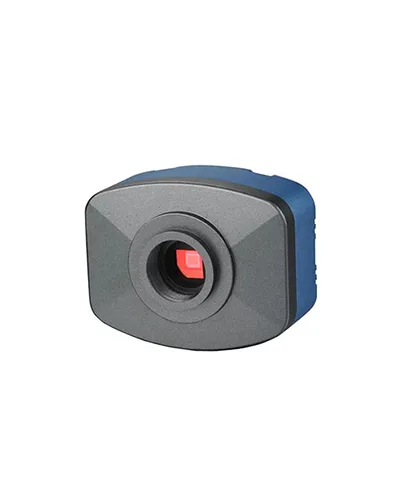

BUC2B Series USB2.0 digital cameras are mainly designed for microscopes to capture microscope images, videos and display real-time live video on your PC screen. They come with a high-resolution digital camera, built-in IR filter and user-friendly software. Adapters for all sizes of microscopes are optional. The cameras can provide high quality image and are widely used in academic and medical field for high precision and resolution image capturing and processing.
Image Sensor : 1/2.5” CMOS Sensor, Micron MT9P031 Effective Pixels : 5.0MP Resolution : 2592×1944 Pixel Size : 2.2μm×2.2μm Frame Rate : 6fps@2584×1936 - 15fps@1272×952 - 23fps@632×472 Sensitivity : 1.4 V/lux-S(550nm) Exposure Time : 0.001-0.5 sec Dynamic Range : 60dB SNR : 40.5dB Color Depth : 24bit A/D 8-bit Exposure Control : Auto/Manual White Balance : Auto/Manual Scan Mode : Progressive Scan Shutter Type : Electronic rolling shutter Filter : RGB filter Lens Interface : C/CS Data Output : USB2.0, 480Mb/s Power Supply : USB2.0, 500mA Working Temperature : 0°C ~ 60°C Storage Temperature : -20°C ~ 70°C Working Humidity : 45%~ 85% Operating System : Windows 2000/XP/ Vista/Win7/Win8/Mac/Linux Size and Weight : 69mm×87mm×44mm, 220g
The CMEX-WIFI 5 camera is equipped with a 5 MP CMOS sensor with 12 bits grayscale conversion and a 24 bits color rendering. The CMEX camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems
USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
