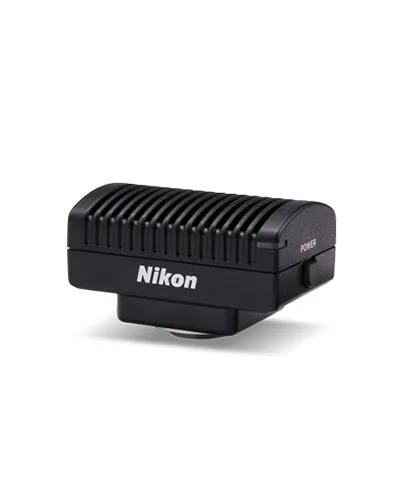

Nikon's DS-Fi3 is a new high-definition color microscope camera equipped with a 5.9 megapixel CMOS image sensor. Its high-speed data readout, superior color reproduction and high quantum efficiency are optimal for imaging in various observations, such as brightfield, DIC, phase contrast and fluorescence observation. The DS-Fi3 has significantly higher quantum efficiency and lower readout noise than conventional models. It allows the capture of brighter images with higher S/N ratios in fluorescence observation.
Image sensor : 1/1.8 inch Color CMOS image sensor & Size : 6.91 x 4.92 mm Recordable pixels : All pixels: 2880 x 2048 & 2 vertical and 2 horizontal pixels average: 1440 x 1024 Lens mount : C-mount ISO sensitivity (recommended exposure index) : Standard: equivalent to ISO 50 (Selectable from ISO 50 to ISO 3200 equivalent) Live display mode* (Maximum fps) : All pixels (2880 x 2048): 15 fps 2 vertical and 2 horizontal pixels average : 30 fps (1440 x 1024) : 30 fps
Exposure time : 100μ sec to 30 sec Photometry mode : Average photometry : Average intensity within the photometry area Peak photometry : Maximum intensity within the photometry area
Exposure correction : Average metering : ±1EV, Step: 1/6EV Peak hold metering : -1EV to ±0EV Operating environment : 0-40°C , 60% RH max. (without condensation) Interface : USB3.0 (connect with PC, DS-L4) x1, External trigger x1 Power Supply : AC100-240V 50Hz/60Hz Power Consumption : 4.8W Dimensions : 100 (W) x 66 (D) x 65 (H) mm Weight : 400g (approx.)
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
