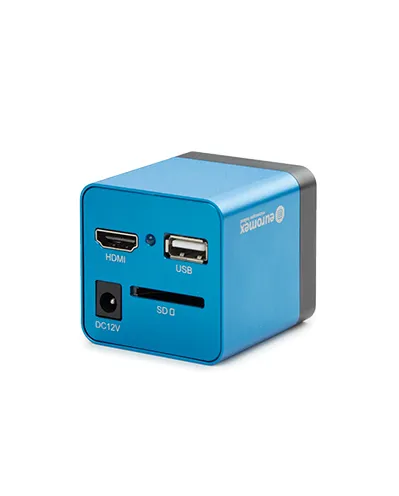

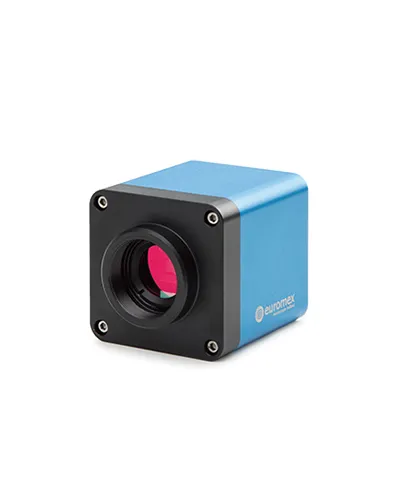

The Euromex HD-Mini standalone camera offers the perfect solution to modern microscopy for industry and laboratories where real time images are needed. These HD image quality cameras can be used for biological-, metallurgical- or stereo microscopes. The real time images generated with this standalone camera provide excellent color rendering at high frame rates and very user friendly. No need to open or start a computer or any computer knowledge to use these camera’s. All camera settings are done automatically. This results in faster, more flexible and compact working conditions
Sensor : HDMI 1.2 Mega pixels CMOS high sensitive sensor (Aptina) Format : 1/3 inch, HDTV 720p Pixels : 1280x720 pixels (capture mode), 1280x720 pixels (live mode) and HDMI 30 fps Scan mode : Progressive scan Pixel size : 3.75x3.75μm Noise : 3D Noise reduction function Sensitivity : 6.5v/lux-sec White balance : Automatic/manual Dynamic range : 85.3dB S/N max : 44dB Interface : HDMI Storage : Images are saved to a standard high speed 4 Gb SD memory card (Recommend using SD card of class 4 or higher and ≤32Gb) Mounting : C-mount interface Power supply : DC 12V/ 1A adapter Supplied with : HDMI cable, DC 12V/ 1A power supply, 4GB SD Card, USB mouse, 0.37x c-mount adapter, 23.2~30.0/ 30.5mm adapter rings
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
