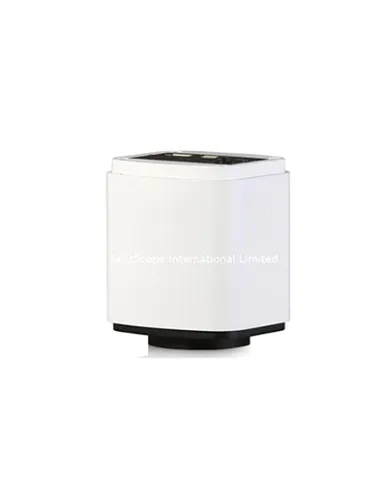

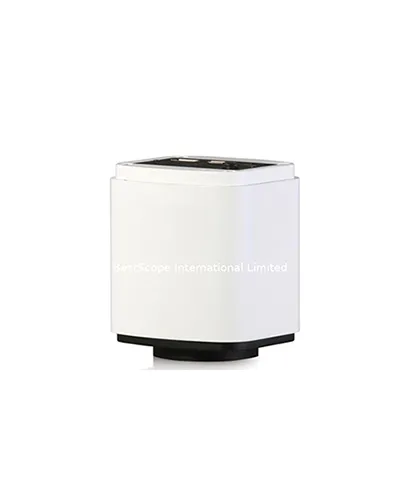

BHC3-1080P HDMI Microscope Camera is a 1080P scientific grade digital camera that has ultra superior color reproduction and super fast frame speed. BHC3-1080P can be connected to a LCD monitor or HD TV via HDMI cable and operated independently without connecting to PC. The image/video capture and operate can be controlled by mouse, so no shaking when you take images and videos. It also can be connected to a PC via USB2.0 cable and operate with the software.
Image Sensor : CMOS, Sony IMX236 Sensor Size : 1/2.8" Pixel Size : 2.8um × 2.8um Video Resolution : 1920 × 1080 Captured Image Resolution : 3264 × 1840 on SD card to LCD monitor, 1920 × 1080 and 3264 × 1840 with software to PC Frame Rate : 1920 × 1080 30fps via USB2.0 - 1920 × 1080 60fps via HDMI Data Record : High speed SD Card (8G) Video Record : 1080p 30fps @ SD Card - 1080p 30fps @ PC Scan Mode : Progressive Electronic Shutter : Electronic Rolling Shutter A/D conversion : 8 bit Color Depth : 24bit Sensitivity : 510mV Dynamic Range : 68dB S/N ratio : 52dB Exposure time :0.001 sec ~ 10.0 sec Exposure : Automatic & Manual White balance : Automatic Settings : Gain,Gamma,Saturation,Contrast, scale bar function Built- in software : Cloud 1.0 version PC software : IS Capture Output model 1 : USB2.0 Output model 2 : HDMI System Compatible : Windows XP/Vista/Win 7/8(32 and 64-bit ), MAC OSX Optical port : C- Mount Power Supply : DC 12V /2A Operational Temperature : 0°C~60°C Humidity : 45%-85% Storage Temperature : -20°C~70°C Dimension & Weight : 78*70.8*90.7mm, 1kg
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
