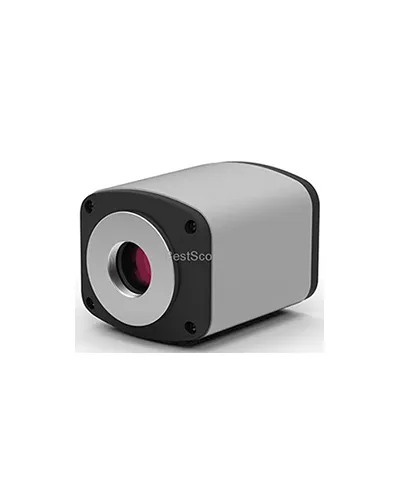

BHC3E-1080P HDMI Microscope Camera is a 1080P economic HDMI digital camera. BHC3E-1080P can be connected to a LCD monitor or HD TV via HDMI cable and operated independently without connecting to PC. The image/video capture and operate can be controlled by mouse, so no shaking when you take images and videos. It also can be connected to a PC via USB2.0 cable and operate with the software
Image Sensor : CMOS, Aptina MT9P031 Sensor Size : 1/2.5" Pixel Size : 2.2um × 2.2um Video Resolution : 1920 × 1080 Capture Resolution : 2592 × 1944 Frame Rate : 1920 × 1080 15fps via USB2.0 - 1920 × 1080 15fps via HDMI Data Record : SD Card (4G) Video Record : 1080p 15fps @ SD Card - 1080p 15fps @ PC Scan Mode : Progressive Electronic Shutter : Electronic Rolling Shutter A/D conversion : 8 bit Color Depth : 24bit Dynamic Range : 60dB S/N ratio : 40.5dB Exposure time : 0.001 sec ~ 10.0 sec Exposure : Automatic & Manual White balance : Automatic Settings : Gain,Gamma,Saturation,Contrast Built- in software : Cloud 1.0 version PC software : IS Capture Output model 1 : USB2.0 Output model 2 : HDMI System Compatible : Windows XP/Vista/Win 7/Win 8(32 and 64-bit ), MAC OSX Optical port : C- Mount Power Supply : DC 12V /2A Operational Temperature : 0°C~60°C Humidity : 45%-85% Storage Temperature : -20°C~70°C Dimension & Weight : 74.4*67.2*90.9mm, 0.8kg
The CMEX-WIFI 5 camera is equipped with a 5 MP CMOS sensor with 12 bits grayscale conversion and a 24 bits color rendering. The CMEX camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems
USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
