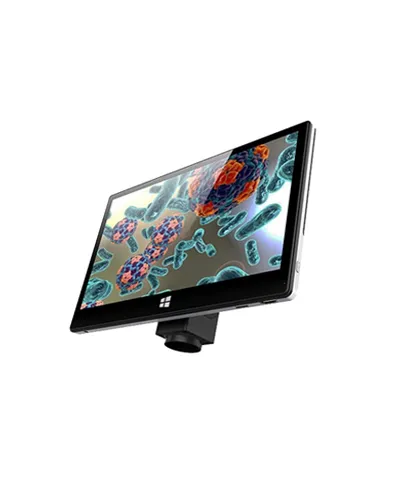

MD28-W is a LCD tablet display camera with Wifi, the camera has 16 megapixels resolution, fast frame rate 30fps keeps smooth image view, it is equipment with 11.6 inch big screen in Windows 10 OS, and integrated with functional image analysis software. User can control the camera by touch screen and mouse, share the image to other monitor by HDMI port, copy images to other save device through USB2.0 data port and TF card. It is quite convenience for education, industry and biological labs to share microscope images at side.
Spesifikasi: Windows tablet screen camera Item: MD28-W Screen size: 11.6 inch Sensor size: 1/2.3 inch Effective resolution: 16 megapixels Frame rate: 30fps@1080P Output data: USB2.0、HDMI、TF(integrated WIFI) Pixel size: 1.335um×1.335um Power line: DC-12V/2A Image analysis function UI interface: Digitization, Mouse controllable, User friendly design Marking functions: Point coordinates, cross lines,coordinate systems,text annotations Measurement function: Line length, fold line length, curve length, parallel line distance, point to line distance Distance between two circle center: Radius set circle, two-point set circle, three-point set circle Geometric measurement: Line length, radius, two points circle, three points circle, concentric circle Geometric area: Polygon, Square Image snapshot: Support 16 megapixels image capture Record video: Support 1080P video
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
