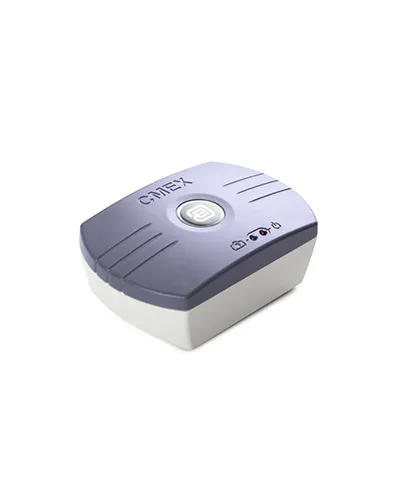

USB-2 cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The CMEX-1 is equipped with a CMOS sensor with 10 bits grayscale conversion and a 24 bits color rendering. The camera is equipped with USB-2 data interface and supplied with ImageFocus 4 software. Besides capturing of images and videos, the ImageFocus 4 software allows measurements on still and live images and annotations on captured images. Compatible with Windows 7 and higher both 32 and 64 bits configurations. A Mac OS light version is available (for capturing images only)
Product number : DC.1300c Sensor : CMOS 1/2.5 inch Pixels : 1272 x 952 pixels, 1.3 Mpix Scan mode : Progressive, rolling shutter Pixel size : 2.2 μm x 2.2 μm Filter : RGB Mount : C-mount Max fps : Up to 15 frames per second (1272 x 952 pixels) Up to 30 frames per second (632 x 472 pixels) ADC : 10 bits Color depth : 24 bits Sensitivity : 1.3 V/lux-sec @ 550 nm Exposure : Automatic or manual, from 1 ms to 300 ms White balance : Automatic/manual Dynamic range : 72 db S/N max : 55 db Data interface : USB 2.0 at 480 Mb/s Operation : 0 – 60° C, 45-85 % humidity Storage temperature : -20 to 70° Celsius Software : Windows7 and higher (32 and 64 bit configurations)
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
