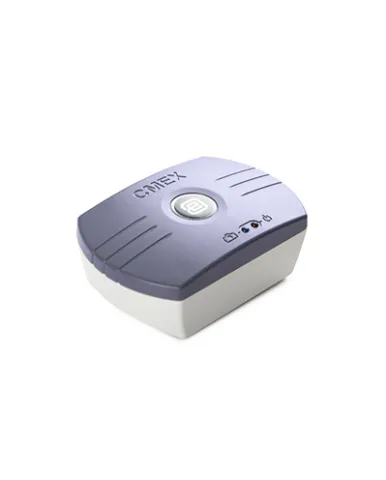

USB2 Camera CMOS Sensor - Euromex CMEX2F

Category :
Digital Camera Microscope

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

USB-2 cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The CMEX-2f, CMEX-5f and CMEX-12f are equipped with an extra fast CMOS sensor with 8 bits grayscale conversion and a 24 bits color rendering. The CMEX-f cameras are equipped with USB-2 data interface and supplied with ImageFocus Plus software. Besides capturing of images and videos, the ImageFocus Plus software allows measurements on still and live images and annotations on captured images, stitching and stacking of images and more. Compatible with Windows 7 and higher both 32 and 64 bits configurations. A Mac version is available

Product number : DC.2000F
Sensor : CMOS 1/2.9 inch
Pixels : 1920 x 1060 pixels, 2.0 Mpix
Scan mode : Progressive, rolling shutter
Pixel size : 2.8 μm x 2.8 μm
Filter : RGB
Mount : C-mount
Max fps : Up to 30 frames per second (1920x 1080 pixels)
ADC : 12 bits
Color depth : 24 bits
Sensitivity : 0.51 V/lux-sec @ 550 nm
Exposure : Automatic or manual, from 1 ms to 2 s
White balance : Automatic/manual
Dynamic range : 72 db
Data interface : USB 2.0 at 480 Mb/s
Operation : 0 – 60° C, 10-85 % humidity
Storage temperature : -20 to 70° Celsius
Software : Windows 7 and higher (32 and 64 bit configurations) and Mac OS
