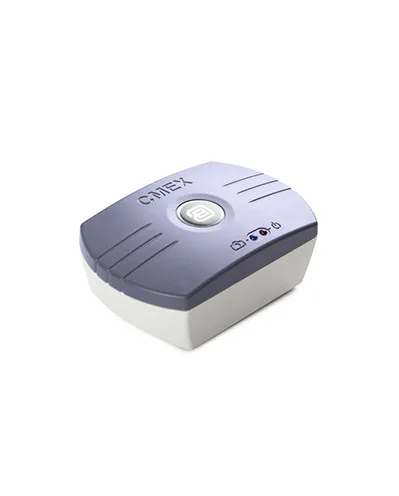

USB-2 cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The CMEX-2f, CMEX-5f and CMEX-12f are equipped with an extra fast CMOS sensor with 8 bits grayscale conversion and a 24 bits color rendering. The CMEX-f cameras are equipped with USB-2 data interface and supplied with ImageFocus Plus software. Besides capturing of images and videos, the ImageFocus Plus software allows measurements on still and live images and annotations on captured images, stitching and stacking of images and more. Compatible with Windows 7 and higher both 32 and 64 bits configurations. A Mac version is available
Product number : DC.5000F Sensor : CMOS 1/2.8 inch Pixels : 1920 x 2560 pixels, 5.0 Mpix Scan mode : Progressive, rolling shutter Pixel size : 2.0 μm x 2.0 μm Filter : RGB Mount : C-mount Max fps : Up to 30 frames per second (2560 x 1920 pixels) Up to 50 frames per second (1600 x 1200 pixels) Grayscale conversion : 8 bits Color depth : 24 bits Sensitivity : 2.0 V/lux-sec @ 550 nm Exposure : Automatic or manual, from 1 ms to 2 s White balance : Automatic/manual Dynamic range : 72 db Data interface : USB 2.0 at 480 Mb/s Operation : 0 – 60° C, 10-85 % humidity Software : Windows 7 and higher (32 and 64 bit configurations) and Mac OS
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
