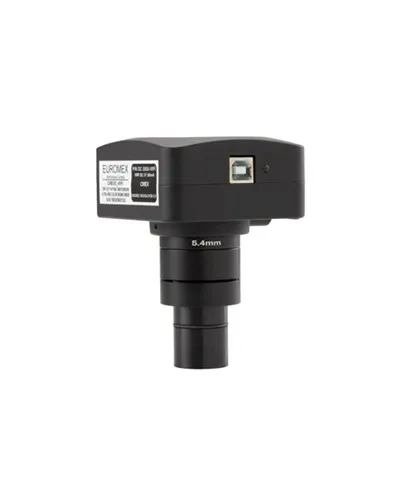

The CMEX-WIFI 5 camera is equipped with a 5 MP CMOS sensor with 12 bits grayscale conversion and a 24 bits color rendering. The CMEX camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems
Product number : DC.5000-WIFI Sensor : CMOS 1/2.5 inch Pixels : 1280 x 720 pixels, 5.0 Mpix Scan mode : Electronic rolling shutter Pixel size : 2.2 μm x 2.2 μm Filter : RGB color filter and IR-cut off filter (380-650 nm) Mount : C-mount Max fps : Up to 12 frames per second ADC : 12 bits Sensitivity : 1 V/lux-sec @ 550 nm Exposure : Automatic or manual, , from 1 ms to 800 ms White balance : Automatic/manual Dynamic range : 61 db S/N max : 43 db Data interface : WIFi H.264 encoded images. Secured with key Operation : 0 – 50° C, 30-80 % humidity Storage temperature : -20 to 60° Celsius Power supply : With supplied USB charger or through USB port of a PC Housing : Zinc-aluminium alloy, 68 x 68 x 45 mm (H) Compatibility : Windows 7, 8, 10 (32 and 64 bit configurations), iOS IPad or IPhone, Android Pad and Phones
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
