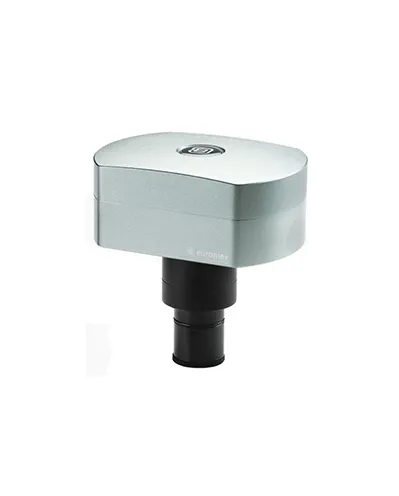

USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
Number of pixels (MP) : 20 Sensor : sCMOS Sensor size (inches) : 1” Pixels size (μm) : 2.4 x 2.4 Resolutions : 5440 x 3648, 2736 x 1824, 1824 x 1246 Exposure time : 0.264 ~ 15000 ms Max. frames (p/sec) : 15,50,60 Grayscale conversion : 16 bits Color rendering Sensitivity : 36 bits Scan mode : Progressive, rolling shutter Filter : RGB Mount : C-mount ADC : 16 bits Color depth : 36 bits Exposure : Automatic or manual, from 0.1 ms to 3 seconds White balance : Automatic/manual Data interface : USB 3.0 Operation : 0 – 60° C, 45-85 % humidity Storage temperature : -20 to 70° Celsius Software : Supplied with ImageFocus Alpha, image and video capturing and measuring software For Win 7/ 8/ 10 (32 and 64 bit configurations). PC requirements: Compatible with Intel Core 2, 2.8 GHZ or higher, 2GB, USB-3 high speed, 17 inch display. A Mac OS Light software version is also supplied, image capturing only
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
