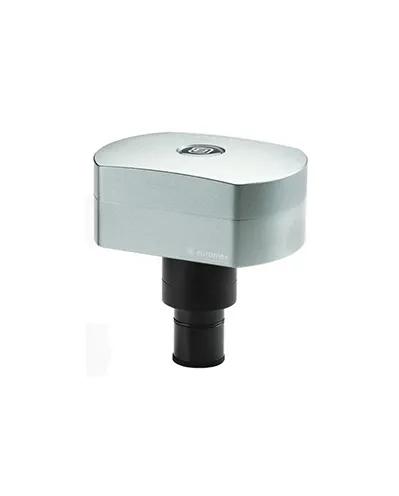

USB-3 sCMOS cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes. The sCMEX-3, sCMEX-6 and sCMEX-20 cameras are equipped with a scientific grade back illuminated sCMOS sensor with 16 bits grayscale conversion and an outstanding 36 bits color rendering. Suitable for brightfield, darkfield and fluorescence. The sCMEX cameras are equipped with a USB-3 data interface and supplied with ImageFocus Alpha software
Number of pixels (MP) : 3.1 Sensor : sCMOS Sensor size (inches) : 1/2.8” Pixels size (μm) : 2.5 x 2.5 Resolutions : 2048 x 1536, 1920 x 1080 Exposure time : 0.244 ~ 15000 ms Max. frames (p/sec) : 50, 58 Grayscale conversion : 16 bits Color rendering Sensitivity : 36 bits Scan mode : Progressive, rolling shutter Filter : RGB Mount : C-mount ADC : 16 bits Color depth : 36 bits Exposure : Automatic or manual, from 0.1 ms to 3 seconds White balance : Automatic/manual Data interface : USB 3.0 Operation : 0 – 60° C, 45-85 % humidity Storage temperature : -20 to 70° Celsius Software : Supplied with ImageFocus Alpha, image and video capturing and measuring software For Win 7/ 8/ 10 (32 and 64 bit configurations). PC requirements: Compatible with Intel Core 2, 2.8 GHZ or higher, 2GB, USB-3 high speed, 17 inch display. A Mac OS Light software version is also supplied, image capturing only
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
