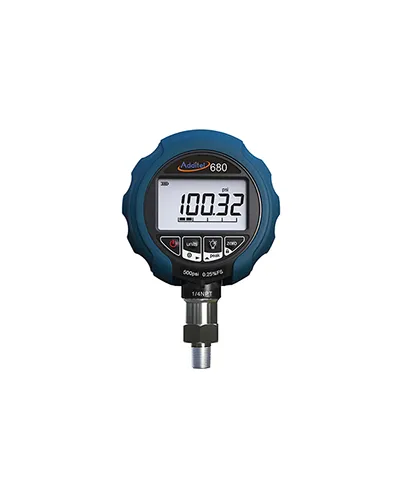

Digital Pressure Gauge - Additel ADT680-10-GP5K-PSI-N

Category :
Digital Pressure Gauge

Price :

Rp.25.700.000

Chat Us

DESCRIPTION
SPECIFICATION

With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the 680 series digital pressure gauges provide an accurate, reliable, and economic solution for a wide range of pressure applications. They are loaded with functionality and remarkably easy to use. To reach the best performance, every silicon pressure sensor in our gauges is specially aged, tested and screened before assembly

Gauge pressure range : 0 to 5000 psi (350 bar)
Accuracy : 0.1% FS
Media : Gas and liquid
Engineering units : Pa, kPa, MPa, bar, mba, psi, kgf/cm2, mmH2O, mmHg, inH2O, inHg, ozf/in, %, °C, °F.
extend units : inH2O(20°C), inH2O(60°F), mmH2O(20°C), mmH2O(15°C), ftH2O(60°F), or ftH2O(4°C)
Overpressure alarm : Display will flash over 120%FS
Fitting : 1/4NPT male, 1/4BSP male, M20×1.5 male (≤15,000 PSI)
Max/Min data capture : Saves Max and Min data during pressure measurement
Certificates : CE R&TTE, FCC ID, IC ID
Protection level : IP67
Vibration : 5g(20-2000Hz)
Shock resistance : 100g/11ms
Dimensions : 100mm x 40mm, total height : 157mm
Weight : 500g
