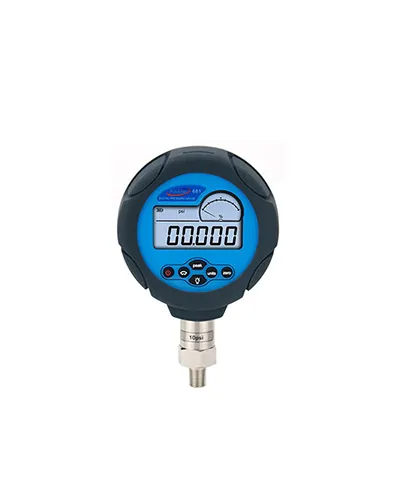

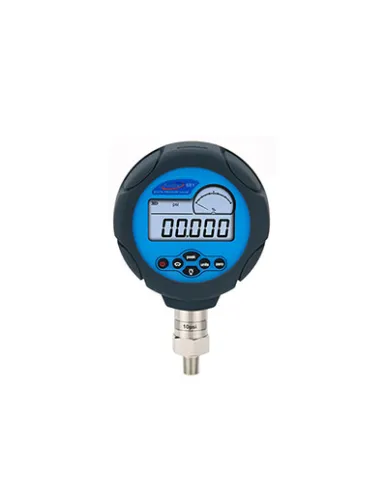

Digital Pressure Gauge – Additel ADT681-10-GP30K-PSI-N

Category :
Digital Pressure Gauge

Price :

Rp.43.000.000

Chat Us

DESCRIPTION
SPECIFICATION

Additel pressure gauges give you the widest variety of sensor choices on the market. Whether you require low inches of water measurement or very high pressure measurement. With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the 681 series digital pressure gauges provide an accurate, reliable, and economic solution for a wide range of pressure applications. They are loaded with functionality and remarkably easy to use. To reach the best performance, every silicon pressure sensor in our gauges is specially aged, tested and screened before assembly

Gauge pressure range : 2000 bar
Accuracy : 0.1% FS
Media : Gas, liquid
Display : Description: 5 full digit FSTN LCD, numeral display height: 16.5mm (0.65")
Engineering units : Pa, kPa, MPa, psi, bar, mbar, kgf/cm2, inH2O@4°C mmH2O@4°C, inHg@0°C, mmHg@0°C
Overpressure alarm : Display will flash over 120%FS
Fitting : 1/4NPT male, 1/4BSP male, M20×1.5 male (≤15,000 PSI)
Max/Min data capture : Saves Max and Min data during pressure measurement
Protection Level : IP67(available for 681IS GP15-60K)
Vibration : 5g (20-2000 Hz)
Shock Resistance : 100g/11ms
Communication : RS232
Dimension : Ø110mm X 35mm depth X 176mm
Weight : 0.6 kg
