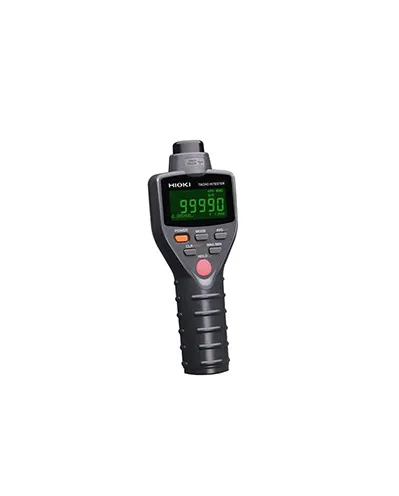

The Hioki FT3405 and FT3406 are portable, contactless digital tachometers that use reflected visible spectrum light to measure the speed of a rotating object to which reflective tape has been affixed. The instruments can also be used as a contact-type tachometer by attaching the Z5003 Contact Adapter. Contactless performance ensures safety and peace of mind when measuring rotating objects that are recessed inside equipment or whose movement poses a hazard. Simply apply reflective tape to the object being measured, point the instrument at the tape, and press the button
Measurement method : Non-contact : Using red visible-spectrum light and reflective tape & Contact : Using optional Contact Adapter Measurement ranges Non-contact, AVG=ON : Rotation (r/min) : (30.00 to 199.99) to (20000 to 99990), Rotation (r/s) : (0.5000 to 1.9999) to (200.0 to 1600.0), Period (ms) : (0.6000 to 1.9999) to (200.0 to 1999.9), Count : 0 to 999999 Measurement ranges Contact, AVG=ON : Rotation (r/min) : (15.00 to 199.99) to (2000 to 19999), Rotation (r/s) : (0.2500 to 1.9999) to (200.0 to 333.00), Period (ms) : (3.000 to 19.999) to (200.0 to 3999.9), Count : 0 to 999999 Accuracy : Up to 9999 counts: ±1 dgt. (AVG=ON), ±10 dgt. (AVG=OFF) 10000 counts or more: ±2 dgt. (AVG=ON), ±20 dgt. (AVG=OFF) 20000 counts or more (r/min mode only) : ±20 dgt. (AVG=ON), ±100 dgt. (AVG=OFF) Straight-line speed measurement only: ±0.5 % rdg. add to above-mentioned accuracy Non-contact measuring detection range : 50 mm (1.97 inch) to 500 mm (19.7 inch) Display refresh rate : Approx. 0.5 to 10 times/s Dust and water proof : IP50 (EN60529) Power supply : LR6 (AA) alkaline battery ×2, Max. rated consumption 0.5 VA Dimensions and mass : 71 mm (2.80 in)W × 186 mm (7.32 in)H × 38 mm (1.50 in)D, 230 g (8.1 oz) (including batteries)
The Extech RPM33 provides both contact (2 to 19,999 rpm) and non-contact (2 to 99,999 rpm) revolutions per minute measurements for enhanced versatility. Safely record laser-guided non contact RPM measurements from up to 500 mm (1.6 feet) away. The RPM33 displays on the large five-digit backlit LCD. Store and recall 10 data sets in memory with four parameters (measurement, max, min and average). The unit comes with contact wheel for linear surface speed 0 to 1999.9 meters/minute; 0.2 to 6560 feet/minute) or RPM measurements, 9-volt battery, reflective tape, carrying case, and user manual.
The Extech RPM250W is a compact Laser Tachometer with Bluetooth® connectivity, which allows building and maintenance professionals to view and share revolutions per minute (RPM) data of rotating objects directly from a mobile device using the free ExView® app. With the capability to capture data, display trends, set visual and audio alarms, and send reports, users can gain deeper insights on equipment health.
The RPM10 is a combination tachometer which provides both contact and non-contact RPM measurements, making this device useful in virtually all applications. The RPM10 also features a built-in IR thermometer with laser pointer for measuring surface temperature from -4 to 600 degrees F (-20 to 315 degrees C), making it ideal for checking the operating temperature of motors, bearings and machinery. Complete with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.
