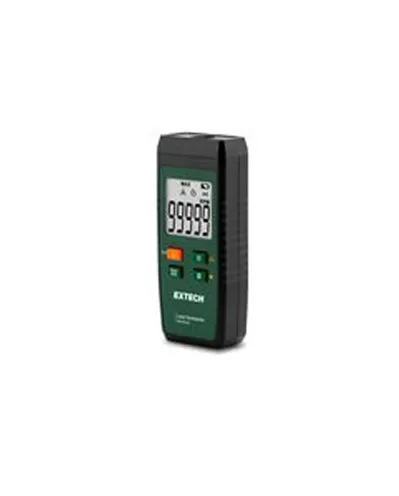

The Extech RPM250W is a compact Laser Tachometer with Bluetooth® connectivity, which allows building and maintenance professionals to view and share revolutions per minute (RPM) data of rotating objects directly from a mobile device using the free ExView® app. With the capability to capture data, display trends, set visual and audio alarms, and send reports, users can gain deeper insights on equipment health.
Spesifikasi: Measurement Angle: ±30° from perpendicular Measurement Distance: 50 to 500 mm Revolution Count (Photo): 0 to 99999 Revolution Count (Photo) Basic Accuracy: ±2 digits Revolution Count (Photo) Max Resolution: 1.0 Rotation Speed [Photo]: 10 to 99999 rpm Rotation Speed [Photo] Basic Accuracy: ±0.04% Rotation Speed [Photo] Max Resolution: 0.1 rpm (<9999.9 rpm), 1 rpm (≥10000 rpm) Sampling Time (Photo): 1 s (>120 rpm) Sensor Type: Photodiode and laser tube Wireless Connectivity: Bluetooth® (via ExView iOS/Android mobile app) Wireless Transmission Range: up to 90 m line of sight Certifications: CE, FCC, UKCA, IEC60825-1:2014 CLASS 3R Dimensions: 4.7 × 2.1 × 1.1 in (120 × 53 × 28 mm) Display: 5-digit (99999-count) backlit segment LCD display Operating Conditions: 32 to 104°F (0 to 40°C),≤80% RH Power: 3 × AAA (1.5V) batteries Warranty: 2 years Weight: 2.9 oz (81.6 g)
The Extech RPM33 provides both contact (2 to 19,999 rpm) and non-contact (2 to 99,999 rpm) revolutions per minute measurements for enhanced versatility. Safely record laser-guided non contact RPM measurements from up to 500 mm (1.6 feet) away. The RPM33 displays on the large five-digit backlit LCD. Store and recall 10 data sets in memory with four parameters (measurement, max, min and average). The unit comes with contact wheel for linear surface speed 0 to 1999.9 meters/minute; 0.2 to 6560 feet/minute) or RPM measurements, 9-volt battery, reflective tape, carrying case, and user manual.
The Extech RPM250W is a compact Laser Tachometer with Bluetooth® connectivity, which allows building and maintenance professionals to view and share revolutions per minute (RPM) data of rotating objects directly from a mobile device using the free ExView® app. With the capability to capture data, display trends, set visual and audio alarms, and send reports, users can gain deeper insights on equipment health.
The RPM10 is a combination tachometer which provides both contact and non-contact RPM measurements, making this device useful in virtually all applications. The RPM10 also features a built-in IR thermometer with laser pointer for measuring surface temperature from -4 to 600 degrees F (-20 to 315 degrees C), making it ideal for checking the operating temperature of motors, bearings and machinery. Complete with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.
