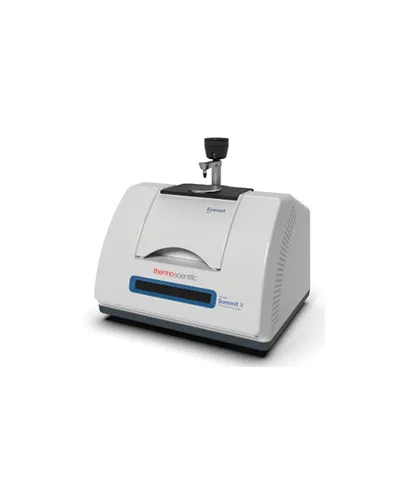

The Thermo Scientific™ Nicolet™ Summit™ FTIR Spectrometers deliver reliable data by minimizing the steps needed to measure and identify materials – all in a rugged, compact footprint. Nicolet Summit instruments can be interfaced with via an integrated Windows® computer or a USB cable. An optional touchscreen interface helps save space and simplify analysis even further. Nicolet Summit FTIR Spectrometers are designed with the Thermo Scientifi c™ LightDrive™ Optical Engine to improve data reproducibility and results; each instrument is tested and shipped to you with factory-verifi ed specifi cations, guaranteeing actual, not “typical” or “achievable,” performance.
Spectral Range : 8,000–350 cm-1 optimized, mid-infrared KBr beamsplitter Spectral Resolution : better than 0.6 cm-1 (0.5 cm-1 (with transmission aperture card)) Signal-to-noise : 35,000:1 (peak-to-peak, one minute) Wavenumber Precision : 0.001 cm-1 at 2,000 cm-1 Wavenumber Accuracy : 0.05 cm-1 at 2,000 cm-1 Ordinate Linearity (ASTM E1421) : <0.15 %T deviation from 0.0%T Infrared Source (LightDrive) : Non-migrating hotspot, single-point source for unmatched data reproducibility Laser (LightDrive) : Solid-state, temperature controlled diode laser with long lifetime Interferometer (LightDrive) : Dynamically aligned interferometer with KBr/Ge mid-infrared beamsplitter optimized for highest spectral throughput Detector : fast-recovery deuterated triglycine sulfate (DTGS Power Consumption : 100-240 VAC, 47-63 Hz, 110 W User Interface/Connection : USB connection to laptop computer LightBar : Multi-colored LED bar displays system status and spectral library match value/QCheck result Background collection : Standard background collection (i.e., user initiated) Smart Background collection (background collected while instrument is idle Operating Systems : Microsoft® Windows® 10 (64-bit) Size (W x H x D) : 34 cm x 24 cm x 32 cm; (13.3 in. x 9.6 in. x 12.7 in.) Weight : 10.9 Kg (24 lbs)
Gas Chromatography is a kind of instrument for qualitative and quantitative analysis of multicomponent complex mixture by using chromatographic separation technology and detection technology. Generally, it can be used to analyze the thermal stable organic compounds in soil, such as volatile organic compounds, organic chlorine, organic phosphorus, polycyclic aromatic hydrocarbons, phthalates, etc.
Gas Chromatography is a kind of instrument for qualitative and quantitative analysis of multicomponent complex mixture by using chromatographic separation technology and detection technology. Generally, it can be used to analyze the thermal stable organic compounds in soil, such as volatile organic compounds, organic chlorine, organic phosphorus, polycyclic aromatic hydrocarbons, phthalates, etc.
Liquid Chromatography uses the mixture in liquid-solid or immiscible between the two liquid distribution ratio differences, the mix of the first separation, then analysis and identification of the instrument.
