Spectrophotometer - Drawell DTR3110-830 Portable Raman

Category :
FTIR, NIR and Raman Spectrometer

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

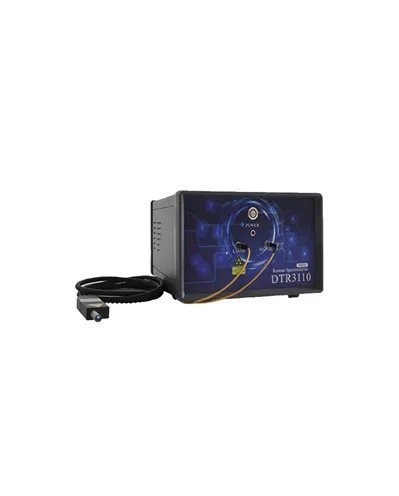

DTR3110-830 portable Raman spectrometer is suitable for field operation. The outstanding reliability makes the detection result much more accurate. The excellent low stray light conditions that enable the spectrometer has a wide range of application, especially in public safety, food safety, and pharmaceutical engineering. The multi-function software facilitated the spectral analysis process in application and the remote experiment through internet access makes the test item much easier.

Spesifikasi:
Interface: USB2.0and WIF
Operating system: Windows10
Integration time: 4ms-120s
Power voltage: DC 19V(+/-5%)
Operating Temp: -10〜40℃
Operating humidity: < 95%
Dimension(L*W*H): 26x33x16.5cm
Weight: 5.5Kg
Spectral stability: σ/μ < 0.5%(COT8hours)
Temp stability: Spectral shift< 1cm-1 (10-40℃)
Variation of intensity (in5~40℃): <±5%
Item: Ultra-high sensitivity, quick cooling CCD
Detector cooled down to: -10℃
Detecting range: 200-1100nm
Effective pixels:2048*64
Dynamic range: 50000: 1
Pixel size: 14μmx14μm
Full well capacity: 300Ke
Sensitivity: QE>40%,6.5μV/e-
Central wavelength: 830nm (+/-1nm)
FWHM: 0.08 nm
Power output: ≥500mW
Power stability: σ/μ <±0.2%
