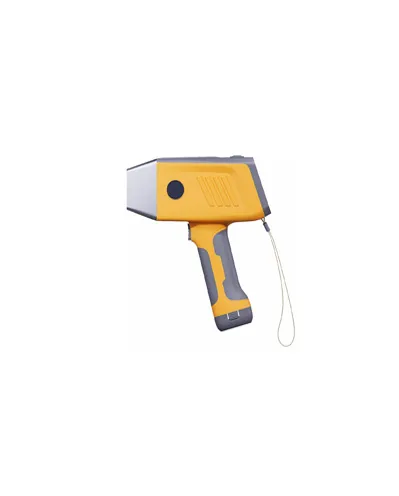

DW-1688 series handheld XRF alloy analyzer is a new generation of handheld XRF products developed by integrating optoelectronics, microelectronics, semiconductors, and computer technologies. It is mainly used for non-destructive, rapid, and accurate analysis and detection of alloy elements and alloy grade identification. The handheld XRF alloy analyzer uses a new large-screen high-resolution LCD display and a new digital multichannel data processor. The ultra-low detection limit makes the performance of the handheld analyzer comparable to that of the desktop. The instrument is small in size, light in weight, can be carried around for measurement, and is suitable for the analysis of various types of alloy samples.
Spesifikasi: Weight: Device: 1.50kg, 1.65kg with battery. Dimension: 250mm x 75mm x 270mm (L*W*H) Excitation source: High-power high-performance X-ray microtube Target: 5 available targets for ray tubes are: gold (Au), silver (Ag), tungsten (W), tantalum (Ta), palladium (Pd) Voltage: 35kV-50kV voltage (changeable) Filter: A variety of selectable filters, automatically adjusted according to different tested objects Detector: High-resolution Si-Pin detector (DW-1688S: optional SDD detector) Detector refrigeration temperature: Peltier effect semiconductor refrigeration system Standard film: 316 external standard films/window protection cover(internal plus version standard films available) Power supply: 1 lithium battery (7.2v\6600mAh) Processor: High-performance ARM pulse processor Operating system: Windows CE6.0 Data transmission: Hotspot sharing via Bluetooth and Wifi Standard mode: Alloy Plus 6.0 Data processing: 32G large-capacity data storage card: >80,000 sets of data and spectrograms Display screen: High-resolution TFT industrial-grade colored high-definition touch screen, it is ergonomic, sturdy, dust-proof, and waterproof, clearly visible under any light conditions Outline design: The integrated designed body is sturdy, waterproof, dustproof, antifreeze, shockproof, and can be used normally in harsh environments. Safe operation: ”One key” detection, auto-lock, detection auto-stop functions. The X-ray will automatically be turned off if there is no sample in front of the detection window for 2 seconds. 3/2 of the shell of the device is covered with a 6061 aluminum alloy frame design, with better X-ray blockage. Detection Report: Customized detection report available as per the customers’ demands Element analysis: Ti,V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Hf, Ta, W, Pb, Bi, Zr, Nb, Mo, Cd, Sn, Sb, Re, In, Au, Ag, Pt, Pd, Ru, Rh, Ir, etc. (DW-1688S can test 5 more elements including Al,Mg,Si,S,P)
The K5800/K5800C nano spectrophotometer is a new full-wavelength ultra-micro spectrophotometer, which can be used to detect nucleic acids, proteins, cell solutions, microarray samples, and conventional full-wavelength scanning. At the same time, there are a dark room and a detection platform, and you can choose two measurement modes: cuvette and detection platform.
An atomic absorption spectrometer(AAS), also known as atomic absorption spectrophotometer, analyzes metal elements according to the effect of ground state atomic vapor on characteristic radiation absorption. It can determine trace or trace elements sensitively and reliably.
The wavelength dispersive X-ray fluorescence spectrometer (WDXRF) is a high-tech product developed by our company based on the experience and fruits of domestic R&D on similar instrument over years, and absorbing the international advanced technology, The technical performance indexes have reached the level of international similar products. It can be used in any field that requires analysis of elements or compounds from Na to U, such as building materials (cement, glass, ceramics), metallurgy (iron and steel, non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemical industry, geological mining, commodity inspection, quality inspection and even human trace elements inspection and so on.
