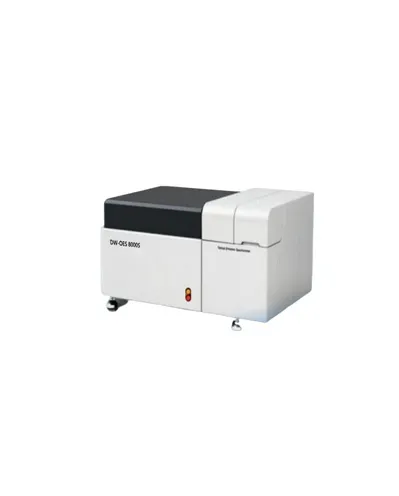

DW-OES8000S adopts a CMOS detector with full-spectrum test technology to test all spectral lines within the wavelength range. Featuring easy configuration as well as addition of test matrix, channel, and analysis program, the instrument is compact in size, easy to maintain and good for laboratory placement. It is a general-purpose instrument for comprehensively testing elements of steel and non-ferrous metal materials.
Spesifikasi: Pasing Longge structure with diameter: Roland circle being 400mm Wavelength range: 134-680nm Pixel resolution: 10pm Constant temperature: 32.5 ±0.5°C Engraved line density: 2400l/mm Primary spectral line dispersion rate: 1.04nm/mm Working temperature: 15-30 °C Relative humidity: ≤70% Power supply: 220±5V, single-phase 50Hz, grounding resistance <10 High energy plasma spark light source technology: High-energy pre-sparking technology (HEPS) Frequency: 100-1000Hz 3mm analysis spacing on sample platform: Spray electrode technique H435mm, L900mm, W 600mm: 120 kg Maximum power: 1500 W Standby power: 70 W
The K5800/K5800C nano spectrophotometer is a new full-wavelength ultra-micro spectrophotometer, which can be used to detect nucleic acids, proteins, cell solutions, microarray samples, and conventional full-wavelength scanning. At the same time, there are a dark room and a detection platform, and you can choose two measurement modes: cuvette and detection platform.
An atomic absorption spectrometer(AAS), also known as atomic absorption spectrophotometer, analyzes metal elements according to the effect of ground state atomic vapor on characteristic radiation absorption. It can determine trace or trace elements sensitively and reliably.
The wavelength dispersive X-ray fluorescence spectrometer (WDXRF) is a high-tech product developed by our company based on the experience and fruits of domestic R&D on similar instrument over years, and absorbing the international advanced technology, The technical performance indexes have reached the level of international similar products. It can be used in any field that requires analysis of elements or compounds from Na to U, such as building materials (cement, glass, ceramics), metallurgy (iron and steel, non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemical industry, geological mining, commodity inspection, quality inspection and even human trace elements inspection and so on.
