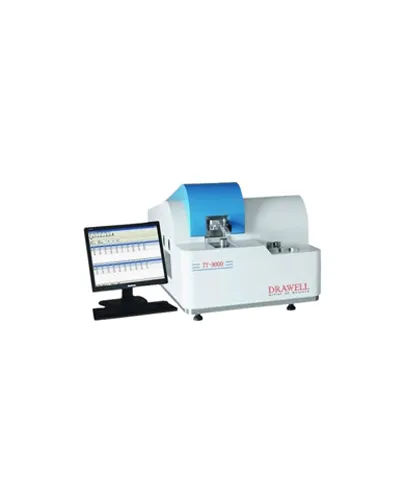

DW-TY-9000 is a Full Range of Solutions for the Entire Metals Industry. It uses full-digital technology to replace bulky photomultiplier tube (PMT) simulation technology and keep pace with international spectrometer technology. The adoption of a vacuum optical chamber design, full-digital excitation light source, advanced CCD detectors, and high-speed data readout system equips the device with high properties, ultra-low limit of detection (LOD), long-term stability, and repeatability.
Spesifikasi: Detection of substrate: Fe、Al、Cu、Ni、Ti、Co、Zn、Sn、Mg、Pb etc Testing time” According to the sample type, generally about 25s Optical system: The Paschen Runge construction full vaccum type optics system Wavelength coverage: 130~800nm Focal length: 400mm Detector: High-performance CCD Array Electrode: Tungsten material injection electrode Analytical gap: The sample analysis of clearance: 3.4mm Operating temperature: (10~35)℃ Storage temperature: (0~45)℃ Operating humidity: 20%~80% Argon purity requirements: 99.999% Argon gas inlet pressure : 0.5MPa Argon flow: Stimulate the flow around 3.5L/min,Maintain flow around 0.4L/min Stimulate the maximum power: 400VA Type of Lamp-house: New digital adjustable light, high energy precombustion technology(HEPS) Discharge frequency: 100-1000 Hz Discharge current: Maximum 400A Excitation aperture: 13mm Vacuum system: The vacuum automatic control and monitoring software Working power supply: 220V AC, 50/60Hz, single phase power supply for protective grounding Instrument size: 725*865*550(mm) Instrument weight: 80kg
Gas Chromatography is a kind of instrument for qualitative and quantitative analysis of multicomponent complex mixture by using chromatographic separation technology and detection technology. Generally, it can be used to analyze the thermal stable organic compounds in soil, such as volatile organic compounds, organic chlorine, organic phosphorus, polycyclic aromatic hydrocarbons, phthalates, etc.
Gas Chromatography is a kind of instrument for qualitative and quantitative analysis of multicomponent complex mixture by using chromatographic separation technology and detection technology. Generally, it can be used to analyze the thermal stable organic compounds in soil, such as volatile organic compounds, organic chlorine, organic phosphorus, polycyclic aromatic hydrocarbons, phthalates, etc.
Liquid Chromatography uses the mixture in liquid-solid or immiscible between the two liquid distribution ratio differences, the mix of the first separation, then analysis and identification of the instrument.
