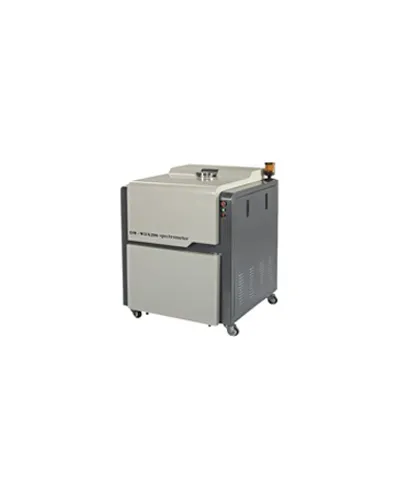

DW-WDX200 Compact Multi-channel X-ray Fluorescence Spectrometer, with the configuration of 10 fixed channels and the capability to analyze 10 elements simultaneously, is able to conduct elemental analysis of arbitrary ten elements from Na to U based on the users’ requirements. This instrument is widely used in cement, steel, powder metallurgy, coal, petroleum, kaolin, glass, refractory materials, and environmental protection and accordingly an ideal choice for quality control in large and middle-scaled enterprises.
Spesifikasi: Temperature control accuracy: Setting value ±0.1 °C Measurable elements: 10 arbitrary elements from Na to U X-ray tube: 400W thin Be end window X-ray tube made by Varian company, Rh anode (Pd anode optional) Analysis algorithms: Empirical coefficient algorithm and theoretical a-coefficient algorithm Power Supply: AC220V, 1 KVA AC purified stabilized voltage power supply High voltage supply: 200W (50KV4mA) 12-hour stability of tube voltage & tube current less than 0.05 % Vacuum pump: biphase~220V, 2 liters Industrial computer: industrial 104 computer Analysis accuracy: °n-1(24 hours, percent content) W0.05 % Measurement time of single sample: W3-5 minutes (including time for changing samples and vacuum pumping) Detector: gas proportional detector + sealed proportional detector; 10 path 1024 channel independent pulse height analyzer Vacuum system: independent vacuum pump station, easy maintenance The highest vacuum degreelower than 5 Pa Gas flow system: High Sophisticated Gas Density Stabilizer with pressure stability up to ±0.003 KPa
The K5800/K5800C nano spectrophotometer is a new full-wavelength ultra-micro spectrophotometer, which can be used to detect nucleic acids, proteins, cell solutions, microarray samples, and conventional full-wavelength scanning. At the same time, there are a dark room and a detection platform, and you can choose two measurement modes: cuvette and detection platform.
An atomic absorption spectrometer(AAS), also known as atomic absorption spectrophotometer, analyzes metal elements according to the effect of ground state atomic vapor on characteristic radiation absorption. It can determine trace or trace elements sensitively and reliably.
The wavelength dispersive X-ray fluorescence spectrometer (WDXRF) is a high-tech product developed by our company based on the experience and fruits of domestic R&D on similar instrument over years, and absorbing the international advanced technology, The technical performance indexes have reached the level of international similar products. It can be used in any field that requires analysis of elements or compounds from Na to U, such as building materials (cement, glass, ceramics), metallurgy (iron and steel, non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemical industry, geological mining, commodity inspection, quality inspection and even human trace elements inspection and so on.
