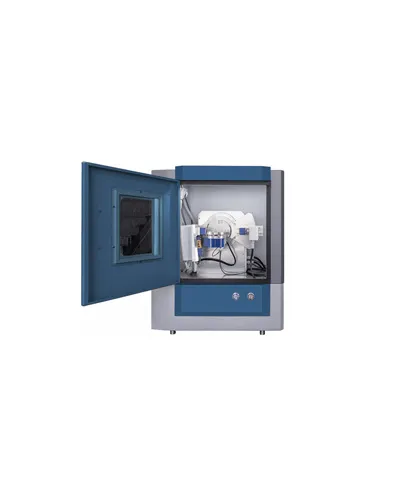

It is designed for commercial processes and quality control. It is a concentration of advanced technology of XRD production, with multi-function and miniaturization. It can do qualitative analysis, quantitative analysis, and crystal structure analysis on metal and nonmetal samples, especially for catalyst, titanium dioxide, cement, and pharmacy industries.
Spesifikasi: Service rating(Tube voltage, tube current): 600W(40kV,15mA) Stability:0.005% X-ray tube: Metal-ceramic X-ray tube, Cu target, Power 2.4kW, Focus size:1 x 10 mm;Air cooling or water cooling(water flow rate>1L/min) Goniometer: θs-θd , diffraction radius 150mm Measuring methodContinuous, stepping, Omg Angular measurement range: Druing leakage time, θs/θd is -3°~150°. Minimum step width: 0.0001° Angular reproducibility: 0.0001° Drive mode: servo motor drive + optical encoder control technology Angle Positioning speed: 1500°/min Counter: Closed Proportional detector Energy spectrum resolution: <25% Max. linear counting rate: ≥5×105cps(Proportional) Instrument Comprehensive regulation: ≤1‰ Overall dimension: 600×410×670(w×d×h)mm
The K5800/K5800C nano spectrophotometer is a new full-wavelength ultra-micro spectrophotometer, which can be used to detect nucleic acids, proteins, cell solutions, microarray samples, and conventional full-wavelength scanning. At the same time, there are a dark room and a detection platform, and you can choose two measurement modes: cuvette and detection platform.
An atomic absorption spectrometer(AAS), also known as atomic absorption spectrophotometer, analyzes metal elements according to the effect of ground state atomic vapor on characteristic radiation absorption. It can determine trace or trace elements sensitively and reliably.
The wavelength dispersive X-ray fluorescence spectrometer (WDXRF) is a high-tech product developed by our company based on the experience and fruits of domestic R&D on similar instrument over years, and absorbing the international advanced technology, The technical performance indexes have reached the level of international similar products. It can be used in any field that requires analysis of elements or compounds from Na to U, such as building materials (cement, glass, ceramics), metallurgy (iron and steel, non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemical industry, geological mining, commodity inspection, quality inspection and even human trace elements inspection and so on.
