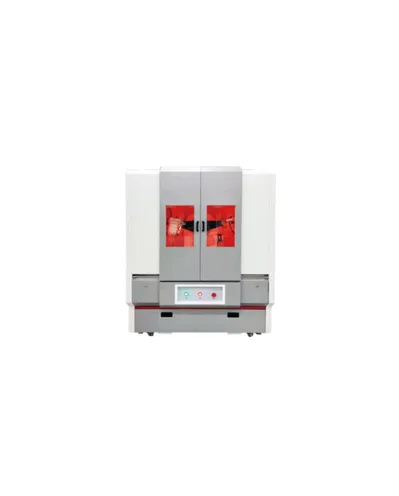

The new high-end X-ray diffractometer (XRD) is a domestic high-performance and high-precision XRD, which is the project of the National Development and Reform Commission. With advanced core technology, it can accurately do qualitative and quantitative phase analysis of metal and non-metallic polycrystalline samples. It can be mainly used in qualitative or quantitative analysis, crystal structure analysis, material structure analysis, macroscopic or microscopic stress determination, crystal size determination, crystal size determination, crystallinity determination, etc., therefore, It is widely used in many disciplines and industries: materials science, physics, chemistry, chemical industry, metallurgy, minerals, drugs, building materials, ceramics, etc.
Spesifikasi: Maximum output power: 3kW Tube voltage: 10 ~ 60KV, 1kV/step Tube current: 5 ~ 50mA, 1mA/step Beam voltage stability: Better than ±0.005% (when the external voltage fluctuates 10%) X-ray tube: Metal-body ceramic X-ray tube Focus size: Focus 1×10mm Standard target: Cu target (other target is optional) Ray tube power: 2.4kW Diffraction circle radius: 180mm ~ 300mm Scanning mode: continuous, step-by-step 2θ Measuring range: -110°~ 168° Minimum step Angle: 0.0001° Maximum rotational speed: 20°/s Diffraction Angle measurement linearity: ≤0.01° Full spectrum Angle measurement accuracy: ±0.005° Beam size: 180×180μm Resolution: ≤0.028° (2θ center) Repeatability error: ±0.0001° Angle reproducibility: 0.0001° Maximum positioning speed: ≤1200°/min Diffraction angular linearity: The angular deviation of all peaks in the full spectrum does not exceed ±0.01°. Overall dimensions: 1320×1150×1860mm
Gas Chromatography is a kind of instrument for qualitative and quantitative analysis of multicomponent complex mixture by using chromatographic separation technology and detection technology. Generally, it can be used to analyze the thermal stable organic compounds in soil, such as volatile organic compounds, organic chlorine, organic phosphorus, polycyclic aromatic hydrocarbons, phthalates, etc.
Gas Chromatography is a kind of instrument for qualitative and quantitative analysis of multicomponent complex mixture by using chromatographic separation technology and detection technology. Generally, it can be used to analyze the thermal stable organic compounds in soil, such as volatile organic compounds, organic chlorine, organic phosphorus, polycyclic aromatic hydrocarbons, phthalates, etc.
Liquid Chromatography uses the mixture in liquid-solid or immiscible between the two liquid distribution ratio differences, the mix of the first separation, then analysis and identification of the instrument.
