Spesifikasi:
Model: L3S

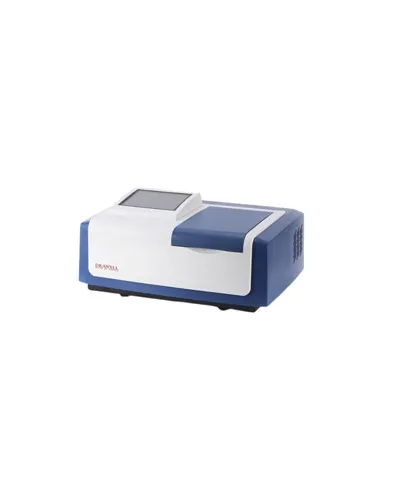

Product name: Split Beam VIS Spectrophotometer
Photometry: Split Beam
Monochromator Type: Czerny-Turner
Focal Length: 160mm
Grating: 1200 lines/mm
Detector: Silicon Photocell
Spectrum Bandwidth: 1.8nm
Wavelength Setting: 8-inch color touch-screen
Wavelength Range: 325-1100nm
Wavelength Accuracy: ±0.5nm
Wavelength Repeatability: ≤0.2nm
Scanning Speed: Fast-Medium-Slow
Stray Light: ≤0.03%T( at 220nm NaI, 360nm NaNo2 )
Photometric Range: 0.0-200.0% T-0.301-4.000 A0.000-9999 C
Photometric Accuracy: ±0.5% T±0.002 Abs (0-0.5A)±0.004 Abs (0.5-1A)
Photometric Repeatability: ≤0.2% T0.001 Abs (0-0.5A)0.002 Abs (0.5-1A)
Baseline: ≤±0.002 A (335-1090nm)
Noise: 100%（T）noise≤0.2%(T) ， 0%（T）noise≤0.1%(T)
Drifting: ≤0.0009 Abs/h (at 500nm after 2h warm up)
Power: AC220V±22V 50Hz±1Hz, 120W
Packaging Size: 710mm X 590mm X 505mm 0.21M3 40kg
