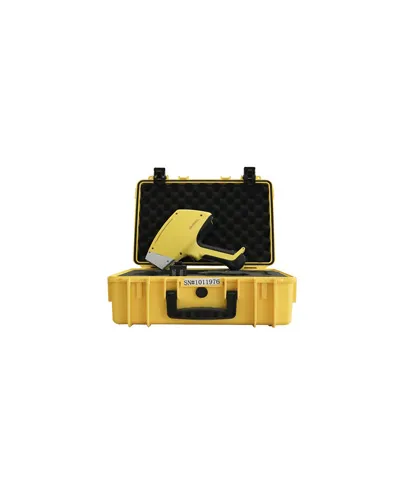

Small, light and easy to carry. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
Spesifikasi: Operating Temperature : -20℃~+50℃ Operating Humidity: ≤90%Limit of Method of analysis: the x-ray energy dispersive method for analysis of fluorescence Simultaneously detect elements: Simultaneously detect dozens of elements Processor and RAM: CPU: 1GBRAM: 1GB Range content: ppm ~ 99.99% Sensor resolution: Low resolution can be 139eV Test window: 12mm. Excitation source: 50KV/200μA maximum pipe pressure pipe flow can be adjusted freely, Agtarget (standard), Au, W, Rh target (optional). Collimator and filter: Sights of 4.0 or 2.0 of diameter, automatic switch of 8 filter. 12 kinds of groups, plus mode consisting of world, can satisfy different types of tests of samples Detector: BOOST Si-PIN detector. Range of detection: All elements between Ti and U. Display system: Industrial resistive touch screen with screen size of 4.3″.Proprietary operating system software and sound waves.Multiple languages including English and Chinese.And it automatically adjusts display brightness according to the environment brightness. Charging system gas: Helium charging system of ordinary pressure. Data processing: 2GB memory.USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely.Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number). Data transmission: Digital multi-channel technology, the transmission of data SPI, a quick scan, count rate, waterproof miniature USB, which can be connected to the desktop computer. Heat dissipation: Equipped with a dedicated T-shaped radiator to dissipate the heat;no need to wait for cooling of detector time again. Safety: Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase standalone password manager mode. Power supply system: Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods.A single battery can last 8 hours. Weight: 1.6Kg(with battery). Dimensions: 254 x 79 x 280 mm(L x W x H).
Gas Chromatography is a kind of instrument for qualitative and quantitative analysis of multicomponent complex mixture by using chromatographic separation technology and detection technology. Generally, it can be used to analyze the thermal stable organic compounds in soil, such as volatile organic compounds, organic chlorine, organic phosphorus, polycyclic aromatic hydrocarbons, phthalates, etc.
Gas Chromatography is a kind of instrument for qualitative and quantitative analysis of multicomponent complex mixture by using chromatographic separation technology and detection technology. Generally, it can be used to analyze the thermal stable organic compounds in soil, such as volatile organic compounds, organic chlorine, organic phosphorus, polycyclic aromatic hydrocarbons, phthalates, etc.
Liquid Chromatography uses the mixture in liquid-solid or immiscible between the two liquid distribution ratio differences, the mix of the first separation, then analysis and identification of the instrument.
