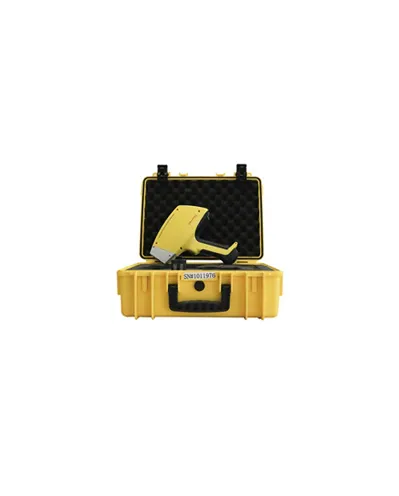

TrueX 860 handheld (XRF)X-Ray Fluorescence Spectrometers are ideal instruments for fast and non-destructive alloy analysis and positive material identification(PMI).
Multiple alloy analysis modes including quantitative analysis, qualitative analysis and multi-calibration methods. Fundamental parameter technology provides more analytical modes and Dynamic match function displays test results, sample numbers and matching information on the interface simultaneously.
Spesifikasi: System Processor: The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel, 32GB memory Display: Industrial resistive touch screen with a screen size of 4.3″ Data storage: Built-in 32 gb memory, 300,000 spectral data, and spectrum can be stored Operating Temperature: -20℃~+50℃ Operating Humidity: ≤90%Limit of Library of extensible and customizable alloys Ability to make measurements on pipes, flat surfaces, surface integrals, and welds Method of analysis: the x-ray energy dispersive method for analysis of fluorescence Simultaneously detect elements: simultaneously detect dozens of elements Processor and RAM: CPU: 1GB RAM: 1GB The standard configuration: 32G Range content: ppm ~ 99.99% 15 seconds reading time GPS, WIFI: integrated into the system Battery: lithium battery, which can be loaded with a maximum capacity of our 6800Ah can operate continuously for 8 hours; Equipped with a high voltage (110V-220V) adapter, can work under current alternative Sensor resolution: solid, liquid, powder Sensor resolution: low resolution can be 139eV Excitation source: 40KV / 100mA-Ag window miniature tube anode X of light and high voltage source Collimator and filter: sights of 4.0 or 2.0 of diameter, automatic switch of 8 filters. 12 kinds of groups, plus mode consisting of world, can satisfy different types of tests of samples Weight: 1.6Kg(with battery). Dimensions: 254x 79×280 mm(LxWxH). Excitation source: 50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional). Detector: SDD detector
Portable Raman spectrometer is suitable for field operation. The outstanding reliability makes the detection result much more accurate. The excellent low stray light conditions that enable the spectrometer has a wide range of applications, especially in the biochemical analyzer, food safety, and pharmaceutical engineering. The multi-function software facilitated the spectral analysis process in the application. The remote experiment through internet access makes the bald test item much easier.
DW-NP-5010 energy dispersive X-ray fluorescence spectrometer (XRF) is widely used in environmental protection, geology, mineral, metallurgy, cement, electronics, petrochemical, polymer, food, medicine and high-tech materials and other fields, playing an important role in product research and development, production process monitoring and quality management.In addition, the instrument can be used in archaeology, building materials, RoHS directive and other industries. It is the enterprise quality control ideal choice.
TrueX 860 handheld (XRF)X-Ray Fluorescence Spectrometers are ideal instruments for fast and non-destructive alloy analysis and positive material identification(PMI).
Multiple alloy analysis modes including quantitative analysis, qualitative analysis and multi-calibration methods. Fundamental parameter technology provides more analytical modes and Dynamic match function displays test results, sample numbers and matching information on the interface simultaneously.
