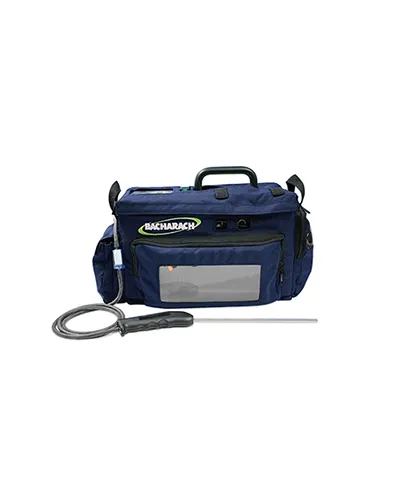

The PGM-IR offers superior performance and functionality for low ppm level leak detection of refrigerants, Carbon Dioxide, Nitrous Oxide or Sulfur Hexafluoride. A built-in library of 50 refrigerants enables the PGM-IR to accurately detect the smallest leaks at their source. The unit is immune to sudden changes in temperature or humidity and to over-exposure. The PGM-IR requires no zeroing of positive readings with extended exposure to gas. It has a data logging capacity of up to 200 readings. With its high flow rate, real-time ppm concentrations or TWA values are displayed instantly with corresponding audible tick-rate indicator to precisely pinpoint leaks. Rapid clearing time enables accurate ambient-air leak detection using the probe along a chiller or display-case.
Type : Portable Gas Monitor using infrared NDIR sensor Refrigerants : CFCs, HFCs, HCFCs, HFOs Natural refrigerant : CO2 Medicine and propellant : N2O Inert gas : SF6 Measuring range : Refrigerants : 0 to 10,000 ppm CO2 : 0 to 8,000 ppm N2O, SF6 : 0 to 1,000 ppm Sensitivity : 1 ppm Flow rate : 1 L/min (typical) Response time : t90 ≤ 5 s Display : Backlit graphic LCD; audible ticker Battery : Rechargeable Li-Ion, 8 hours of continuous operating time Temperature : 32 to +122 °F (0 to +50 °C) Humidity : 5 to 90 %RH, non condensing Altitude : 0 to 6,560 ft (2,000 m) Enclosure : Powder coated aluminum in soft case with shoulder strap Size (w x h x d) : Approx. 19” x 5” x 8” (500 x 130 x 200 mm) Weight : Approx. 7 lbs. (3.2 kg) Approvals : CE mark; NOT approved for use in classified, hazardous areas
The newly developed dual-sensor configuration reduces size by approximately 30% compared to previous models. Light weight (about 100g) means it won’t interfere with your work.
The newly developed dual-sensor configuration reduces size by approximately 30% compared to previous models. Light weight (about 100g) means it won’t interfere with your work.
The GX-Force is RKI’s smallest personal 1-4 gas monitor with a strong internal sample pump capable of a 100’ sampling range. Weighing only 9.8 ounces, the GX-Force can monitor the standard confined space gases (LEL combustibles, Oxygen, Carbon Monoxide, and Hydrogen Sulfide). Utilizing the same micro-sensor technology, which are compatible with the GX-3R, GX-3R Pro, 04 Series, and Gaswatch 3 instruments.
