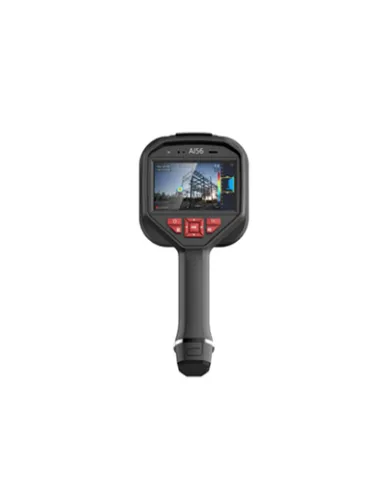

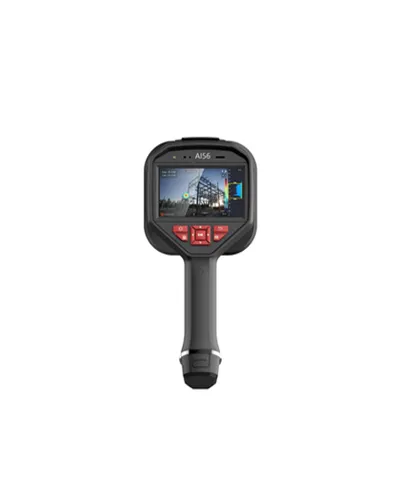

HIKMICRO AI56 acoustic imaging camera is a professional product for gas leak detection and partial release detection. With 64 low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz, the AI56 provides an easy and effective way to locate compressed air leaks in industrial environments or detect partial discharges in electrical systems. By adopting this lightweight, easy-to-use tool, you can spot potential safety risks, minimize troubleshooting, and save additional costs for equipment failure and downtime.
Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz) Bluetooth: Bluetooth 4.1 USB Interface: USB Type-C HDMI Interface: HDMI-D Battery Operating Time: Approx. 3.5 hours Battery Type: Dismountable and Rechargeable Li-ion Battery Battery Charging Time: 5 hours to full charge Protection level: IP40 Power Supply: 5V DC/2A (Charging via USB) Drop Test Height: 1.2 m (3.94 ft) Safety: IEC 61010-1 EMC: EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3 Working Temperature Range: -20 °C to 50 °C (-4 °F to 122 °F) Storage Temperature Range: -20 °C to 60 °C (-4 °F to 140 °F) Relative Humidity: <95 % non-condensing Weight: Approx. 940 g (2.07 lb) Dimension: 292.2 × 127 × 110.7 mm (11.50 × 5.00 × 4.36 in) Tripod Mounting: UNC ¼”-20 Storage Media: Removable 64 GB SD Card Image Storage Capacity 20,000 images Annotations: Voice note: max. 60 seconds; Text note: max. 200 characters Video Storage Capacity: 60 hours Video File Format: MP4
The HIKMICRO Mini2 thermal camera for Android is compact yet powerful. It weighs only 20 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds. The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
The HIKMICRO Mini2Plus thermal imaging camera for Android is compact yet powerful. It weighs only 24 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds.
The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
The HIKMICRO Mini3 thermal imaging camera for Android is compact yet powerful. It weighs only 45 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds.
The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
