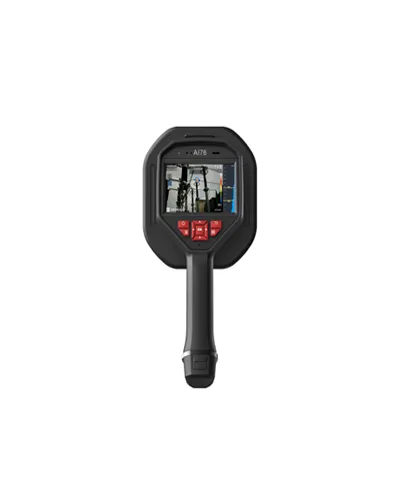

The HIKMICRO AI76 acoustic imaging camera is a professional product for gas leak detection and partial discharge detection. With 136 Low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz, AI76 provides an easy and effective way to locate pressurized air leaks in industrial environments or detect partial discharge in electric systems. By using a large 4.3" LCD touch screen, the results presented on top of a digital picture allow you to quickly find the source of the problems. Analyzer Acoustic software can analyze images captured by acoustic imaging cameras and export reports. By adopting this lightweight and easy-to-use tool, you can discover potential safety risks, minimize troubleshooting, and save extra costs for equipment failures and downtime.
Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz) Bluetooth: Bluetooth 4.1 USB Interface: USB Type-C HDMI Interface: HDMI-D Battery Operating Time: Approx. 2 hours Battery Type: Dismountable and Rechargeable Li-ion Battery Battery Charging: Time 5 hours to full charge Protection level: IP54 Power Supply: 5V DC/2A (Charging via USB) Drop Test Height: 1.2 m (3.94 ft) Safety: IEC 61010-1 EMC: EN 301 489-1,EN 301 489-17,EN IEC 61000-6-2,EN IEC 61000-6-3,EN 61326-1 Working Temperature Range: -20 °C to 50 °C (-4 °F to 122 °F) Storage Temperature Range: -20 °C to 60 °C (-4 °F to 140 °F) Relative Humidity: <95 % non-condensing Weight: Approx. 1200 g (2.64 lb) Dimension: 310.4mm×165mm×117mm (12.22 × 6.49 × 4.61 in) Tripod Mounting: UNC ¼”-20 Vibration: 2g, IEC 60068-2-6 Shock: 25 g, IEC 60068-2-27 Storage Media: Removable 64 GB SD Card Image Storage Capacity: 18000 images Annotations: Voice note: max. 60 seconds; Text note: max. 255 characters Video Storage Capacity: 60 hours Video File Format: MP4
The HIKMICRO Mini2 thermal camera for Android is compact yet powerful. It weighs only 20 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds. The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
The HIKMICRO Mini2Plus thermal imaging camera for Android is compact yet powerful. It weighs only 24 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds.
The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
The HIKMICRO Mini3 thermal imaging camera for Android is compact yet powerful. It weighs only 45 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds.
The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
