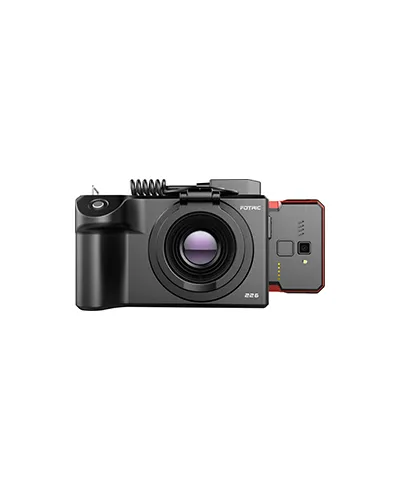

Fotric 226 is a high quality thermal imaging camera with a built-in J7 smartphone to provide easy operation, thermal analysis, and communication capabilities. Using a 384 x 288 pixel sensor, the 226 has a 28deg x 21deg field of view. The minimum focal length with a standard lens is 6” with manual focusing – more precise/selectable than autofocus, with a built-in 8x continuous digital zoom. 8 movable regions of interest can be defined, with emissivity adjustably set for each area. The Fotric 220 Series of thermal cameras combine infrared technology with smartphone capabilities. The easy to learn smartphone app controls all functions. These cameras can record up to 1000 frames of full radiometric video and capture temperature change processes in real time with a user-defined sampling rate of up to 5 frames/sec
IR Resolution : 384 × 288 pixels Field of View (FOV) : 28°× 21° Temperature Range : -20 C to 650 C Minimum Focus Length : 0.15m (Standard Lens) Spatial Resolution (IFOV) : 1.27mrad Thermal Sensitivity (NETD) : ≤0.06 C @ 30 C Measurement Accuracy : ±2 C or ±2% whichever is greater @ environment temperature 10 C to 35 C Focus : Manual Spectral Range : 8~14μm Detector Type : Focal Plane Array (FPA) uncooled microbolometer Zoom : 8X continuous digital zoom Palettes : 15 palette options (Gray White, Gray Red, Iron Red, Rainbow, etc.) Palette Switching : Tap palette icon Noise Calibration : Automatic noise calibration FFC / manual noise calibration FFC Emissivity Adjustment : 0.1 to 1.0 Regional Emissivity Adjustment : Support Automatic Capture of High and Low Temperature : Support Battery Operating Time : 10 hours Charging System : AC Power Adapter Charging Voltage : 12V DC Charger Operating Temperature : -20 C to +50 C Storage Temperature : -20 C to +50 C Humidity : <90%RH Enclosure Rating : IP40 FCC Certification : CFR 47 Part 15.107 and CFR 47 Part 15.109 Tripod Mounting : UNC1/4 -20 Image Format : Standard JPEG, including raw temperature data, radiometric Dimensions (LxHxW) : 118×145×93.5mm Weight : 560 g
The HIKMICRO Mini2 thermal camera for Android is compact yet powerful. It weighs only 20 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds. The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
The HIKMICRO Mini2Plus thermal imaging camera for Android is compact yet powerful. It weighs only 24 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds.
The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
The HIKMICRO Mini3 thermal imaging camera for Android is compact yet powerful. It weighs only 45 g and has a USB-C interface so it can be easily connected to your Android smartphone or tablet to be ready for use within seconds.
The camera is battery-free, so there's no need to charge it or find a charging cable. It is powered by your phone and designed to use very little power to maximise the uptime of your mobile device and and be available at all times.
