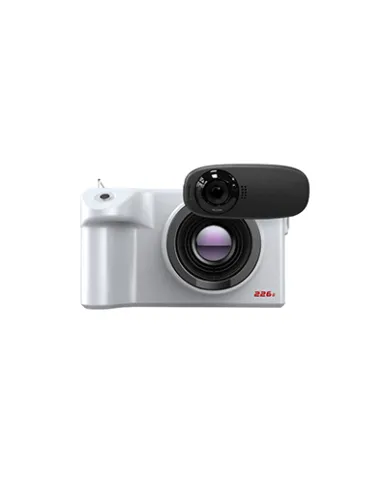

Thermal Imager Camera - Fotric 226B

Category :
InfraRed and Thermal Camera

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

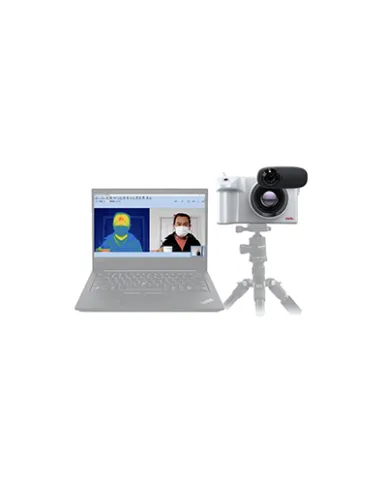

Fotric 226B Infrared Thermal Imager, a standalone infrared camera and PC software combination that provides safe, non-contact measurement of passing human traffic, without requiring person-to-person contact, ensuring the safety of the detection personnel themselves. It has a millisecond response time which automatically locks on to facial outlines to give accurate non-contact temperature measurements. This fast response means that it does not affect traffic flow or behavior habits, yet can quickly detect people with potential health issues. When the Fotric 226B detects a face with an above-normal body temperature, an audible alarm is immediately triggered, a red box is placed on the PC image of the target face, and a high quality image is captured with the accurate body temperature overlaid. WLIR software then automatically emits a buzzer alarm to alert support personnel

IR Resolution : 384 x 288 pixels
Thermal Sensivity (NETD) : <0.05ᴼ C @ 30ᴼ C
Field of View (FOV) : 28ᴼ H x 21ᴼ V
Detector Type : Polysillicon-FPA, uncooled microbolometer 17πm, Spectral range 8-14πm
Frame Rate : 50 Hz
Temperature Range : 20ᴼ C - 60ᴼ C
Temperature Stability : 0.5ᴼ C
AI Face Detection : Dual light detection (visible light and infrared thermal)
AI Body Temperature Algorithm : Calibrate alarm thresholds in real time based on ambient temperature
Statistic Function : Automatic statistics of screening number
Shooting Mode : Automatic abnormal temperature snap shot or manual shooting
Alarm Function : Both color alarm and sound alarm
Color Pallet : Black-White/Iron/Rainbow
Image Format : Standard JPEG with temperature data
Interface Connection : USB
Software : WLIR Body Temperature Screening Software
Operating Temperature : 0 C to 40 C
Storage Temperature : -20 C to 50 C
Enclosure Rating : IP40
Charging System : DC12V Charger
Tripod Mounting : UNC 1/4 - 20"
Image Format : Standard JPEG, including raw temperature data, radiometric
Dimensions : 97 mm x 145 mm x 93.5 mm
Weight : 560 g
