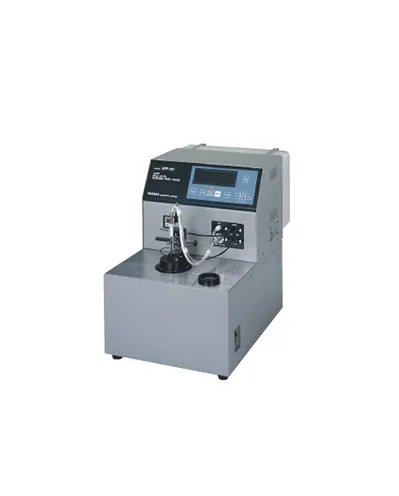

The model AFP-102 automatically executes the Cold Filter Plugging Point (CFPP) test method prescribed in IP309, ASTM D6371 and JIS K2288. After developing its predecessor models, this third generation model has been developed by applying Tanaka’s latest technologies and the various know-hows. “Ease of operation” has been further improved on this model
Confirming standards : IP309, ASTM D6371, EN116 and JIS K2288 Type : 1 test head Specimen volume : 45ml Measuring range : (typical) RT to - 60º C (the lowest temperature varies with the chiller liquid temperature and ambient temperature) Sequence control : By a built-in micro processor Display : By a fluorescence display (VFD) Temperatures displayed with 0.1 oC increments Temperature Sensor : PT-100 CFPP detection : By means of a photo-electric detector consisting of an LED, photo transistor, and light guide (fiber optics). Upper and lower light guides are mounted on sliding type holder Vacuum regulator : Consists of a micro air pump, pressure switch, solenoid valve and a plastic bottle Cooling and heating (needs optional chiller) : By Peltier cells. The hot side of the Peltier cells needs to be cooled by external chiller Temperature control : By step (-34 ºC, -51 ºC and -67 ºC) or linear. The linear cooling rate can be programmed Data output : RS-232C 1 channel (for PC or Optional Printer) 2nd set channel is optional Power requirements : 100 or 120VAC, 5A and 220 or 240VAC, 3A (Please specify AC voltage when ordering) Dimensions and weight : 350mmWx550mmDx480mmH, 27kg
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
