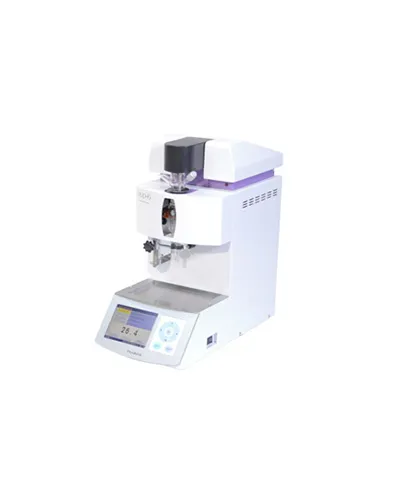

Tanaka AAP6 automatically determines aniline point for wide range of samples. The use of special infrared detector gives the instrument it's ability to see through dark / opaque samples such as power generation fuels and marine diesel oils. The measuring cell can be easily removed and placed on an analytical balance for weighing viscous samples which are solid at ambient temperature. The measuring cell can be cleaned without disassembling, which makes the cleaning easier and safer
Test Methods : ISO 2977, ASTM D611, etc Samples : transparent or opaque / dark (< 8.0 on ASTM color scale) petroleum products Range : ambient to 170°C (338°F), below RT with optional jacketed cell and external chiller Sample cell : modified U-tube Detection : by photo-electric detector Temperature sensor : PT100 in stainless steel sheath Display : 5.7 inch color LCD with LED back light Heater : Immersion heater in stainless steel sheath : 20W Power supply : AC 100 to 240 V 50/60 Hz 12W (max) Size / weight : 230(W) × 455(D) × 685(H) mm / 15kg
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
