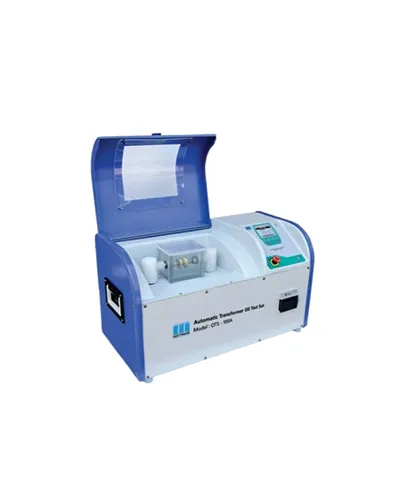

Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Output voltage : 0 - 100kV Voltage accuracy : ±1% ± 2digits Voltage resolution : 0.1kV Voltage rise rate : 0.5kV to 5kV/sec Switch-off time :<1 ms Programmable parameters : Stand time – 0 to 999 secs Stirring Time – 0 to 999 secs Intermediate stand time – 0 to 999 secs Voltage Ramp-up– 0.5kV/sec to 5kV/sec Oil temperature measurement : 0 - 99°C Temperature resolution : 1°C PC Interface : USB Printer : Inbuilt Thermal Printer Internal Memory : 100 test results Display : Large LCD colour display Mains supply : 110V/220V 50/60Hz, ±10% Power consumption : 200VA Environmental condition : 00C to +550C , <90% RH, Non condensing Safety Standards : IEC61010, IEC61326 Standard Accessories : Oil test vessel with a mushroom electrodes Magnetic oil stirrer Retriever for magnetic stirrer Electrode gauge set - 1.0mm / 2.0mm / 2.5mm / 4.0mm Mains cord User manual Calibration Certificate Optional Accessories : Voltage Calibrator Oil test vessel with Spherical Electrodes Oil test vessel with Cylindrical Electrodes Dimension : 650mm X 320mm X 361mm Weight : 39kg
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
