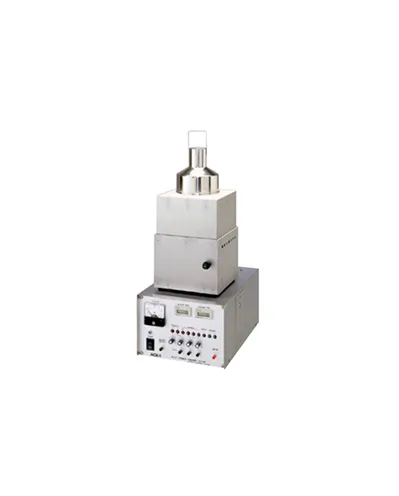

ACR-6 automates the evaporation process of the amount of carbon residue left after evaporation and pyrolysis of an oil. The carbon residue test is intended to provide some indication of relative coke-forming propensities. The microprocessor controlled oven requires less experience to conduct the tedious process and therefore yields more consistent test result
Confirming standards : ISO 6615, ASTM D189, IP 13, etc Process control : By built-in micro processor Heating device : Nichrome coil heater, side and bottom, 1.3kW@100V or 1.3kW@220V Igniting device : Pilot burner system. LP gas or city gas, Pilot burner is ignited manually before each test Flame detector : Sample vapor is ignited and extinguished by detecting temperature by means of sheath type thermocouple Cooling device : Forced air cooling by sirocco fan Power supp;y : AC100/120V or 220/240V 50/60Hz 1.5kW(max.) Gas supply : LP gas or Natural gas (Max. pressure<9.8kPa) Dimension & weight : Control unit : 250W×360D×190H (mm), 7.5kg Oven unit : 190W×260D×440H, 5.5kg
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
