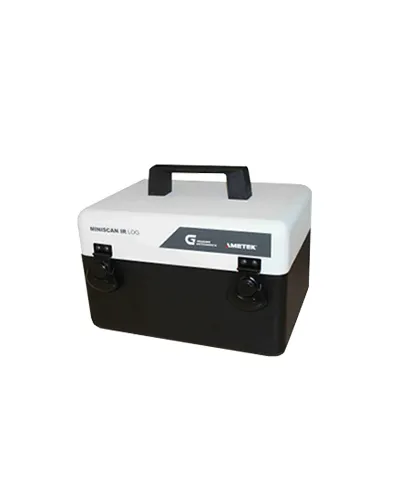

The Miniscan IR Log is a highly versatile and extremely fast FTIR analyzer, designed for on-site condition monitoring of oils and greases. It is also capable of measuring low or high levels of water in oil accurately and quickly without using hazardous reagents. The Miniscan IR Log FTIR analyzer requires only one drop of sample to accurately measure numerous performance indicators of oils and greases. Depletion of anti-wear oxidation compounds and additives, as well as the level of sulfates, nitration, soot or water is measured and pass/fail information is displayed within minutes
Interferometer geometry : High-throughput Michelson interferometer with fixed and moving flat mirrors Standard beamsplitter : Zinc selenide Range /max. spectral resolution : 4000-650 cm-1 / 4 cm-1 Detector : 1.3 mm diameter, thermoelectrically cooled dTGS Laser : Low-powered solid state Cell windows : Selectable path length: 50, 100 or 1000 μm Power supply : 100-240 V AC, 3A, 50/60 Hz & Battery operation: 6600 mAh, 12.6V/3.5 A DC Environmental conditions : Operating temperature 0 to 50°C (32 to 122°F), Humidity up 95% r.h., non condensing Dimensions/weight : WxHxD: 216 x 292 x 191 mm (8 x 11.5 x 7.5 in) / 6.8 kg (15 lbs)
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
