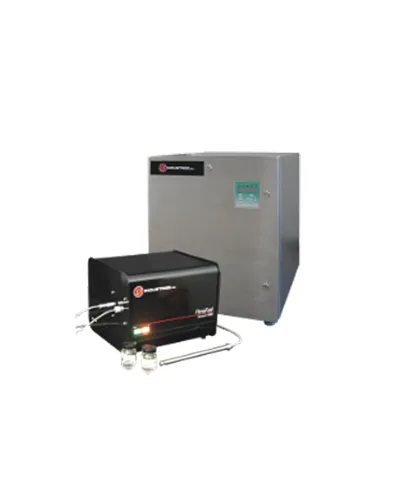

The ParaFue NIR Process analyzer from LT Industries provides comprehensive inline analysis of Diesel, Gasoline, Jet Fuel, Kerosene, Crude Oil, Blending components and Blended Fuels for a wide range of critical properties including Octane, Distillation Points or RVP. The analyzer is also available in a benchtop version designed to improve efficiency when testing in laboratories. With the ParaFuel™ analyzer, accurate measurement of the properties of petrochemical products and crude oil is easy. Whatever the analytical need – inspection of crude oil or finished products, inline property measurements, or validating shipments – the ParaFuel can do the job. The optical analysis technique allows for easy integration and rapid inline measurement
Process/single channel : ParaFuel™ NIR Process Analyzer + one (1) High Energy Bubble Shedding Probe Process/multi channel : ParaFuel™ NIR Process Analyzer + Multiplexer + Up to twenty (20) Probes Laboratory/benchtop : ParaFuel™ NIR Benchtop Analyzer + one (1) Dip Probe Scan time : 30 seconds (user-adjustable) Power supply : 100-240 V AC, 50/60 Hz Classification : C1D2 Standard, C1D1 Optional Control system communication : Modbus RTU Standard (Options: Modbus TCP, 4-20 mA Analog Output Module) Sample : Up to 150°C and up to 7000 kPa (1000 psi) Data storage : Data automatically logged and stored; Standard TCP/IP connection for integration to LIMS Dimensions (WxHxD) : 305 x 397 x 349 mm (12” x 15”x 13”)
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
