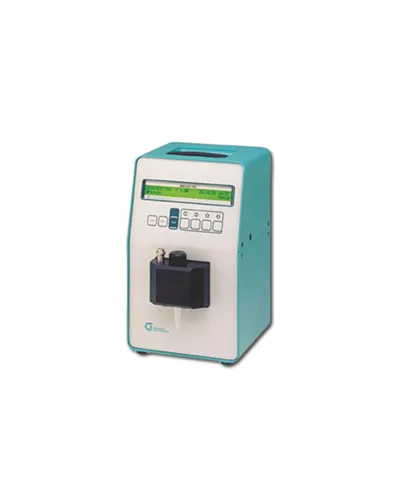

Minitest FFK automatically determines the flow-pressure properties of lubricating grease at low temperatures down to -50°C by means of the Kesternich test. The original and time-consuming method is fully automated and the measuring range is extended far below the original one, resulting in a considerably improved test precision. The principle of the test is based upon the necessary pressure build-up to press an amount of grease through a standard test nozzle at a preset temperature
Test temperature : -50 to + 30°C (-58 to 86°F) Temperature resolution : +/- 0.1°C (+/- 0.18°F) Pressure range : 0 to 300 kPa (0 to 43.5 psi) Pressure resolution : +/- 0.1kPa (0.0145 psi) Communication languages : German, English Power supply : 100/120/230/240V 50/60Hz 200W optional: 12V/10A DC Dimensions : W 196 x H 315 x D 175 mm Weight : 10 kg (22 lbs)
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
