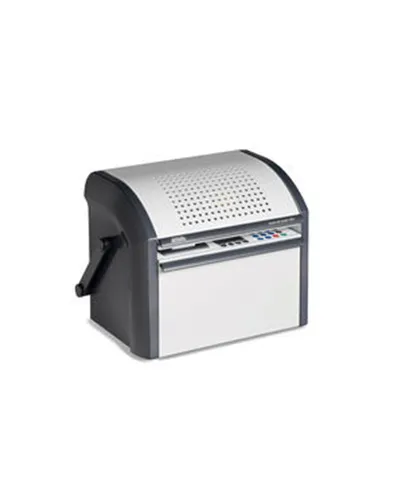

The BAUR DTA Inline is a high performance and reliable oil tester for continuous testing of the breakdown strength of insulating oils during production (inline tests). The combination of extremely short switch-off times during breakdowns and the easy oil sample handling facilitate high quality statements and conclusions on the insulating oil quality
Output voltage : 0 - 100 kVrms symmetrical Voltage slew rate : 0.5 – 10 kV/s Switch-off time : < 10 μs Voltage slew monitoring : Real Breakdown Monitoring (RBM) Accuracy : 0 – 100 kV ±1 kV Resolution : 0.1 kV Internal temperature recording of the oil sample : 0 – 99°C Temperature resolution : 1°C User-specific test sequences : 10 Input voltage : 90 – 264 V (50/60 Hz) or DC 12 V Power consumption : Max. 70 VA Rechargeable battery (option) : Lead-acid battery, 2 x 6 V / 6.5 Ah Data interface : USB 2.0 (type B plug), BAUR Report manager external USB interface (type A plug) Printer : Matrix printer, 24 characters, 57 mm plain paper Ambient temperature (operational) : -10°C to +55°C Storage temperature : -20°C to +60°C Humidity : Non-condensing Dimensions (W x H x D) : 545 x 458 x 380 mm (closed), 545 x 770 x 461 mm (open) Weight : Approx. 40.6 kg
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
