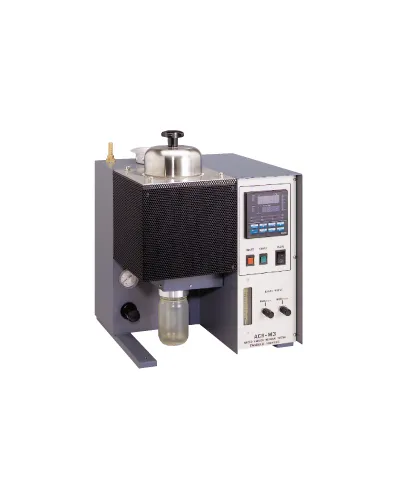

ACR-M3 is a tester to be used for the determination of the amount of carbon residue formed after evaporation and pyrolysis of petroleum material under certain conditions and is intended to provide some indication of the relative coke forming tendency of such materials. Micro Method offers advantages of better control of test conditions, smaller samples, and less operator attention compared to Conradson Carbon Residue test to which it is equivalent
Confirming standards : ISO 10370, ASTM D4530, etc Measuring range : 0.10 to 30 % (m/m) Heating range : Up to 500oC Process controller : Digital Programmable Controller, model PC-935 Thermocouple : JIS J-type (Fe-Constantan) Pressure controller (2nd stage regulator) : Primary pressure : 1400kPa max Control range : 20 to 750kPa (usually 150kPa) Pressure gauge : 0 to 0.7MPa Flow meter : 0.1 to 1L/min Flow rate : Automatically regulated at 150ml/min and 600ml/min, According to ASTM D4530 Condensate trap : 200ml vinyl laminated glass jar with threaded mouth Power supply : AC100/120V or 220/240V 50/60Hz 1.6kW(max) Dimension & weight : 350W x 390D x 460H (mm), 21kg
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
