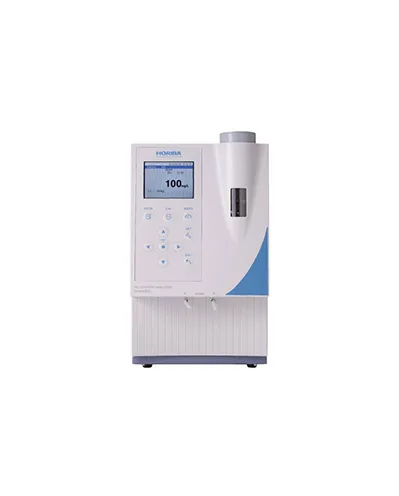

Oil Content Analyzer - Horiba OCMA500

Category :
Lube, Oil and Grease Analyzer

Price :

Rp.286.700.000

Chat Us

DESCRIPTION
SPECIFICATION

The OCMA-500 Oil Content Analyzer has been redesigned for even better operability, maintaining its user-friendly features. After injecting the sample, all you have to do is press a button to get the monitoring operation done quickly, from oil extraction to sample measurement and draining. This machine is easy for anyone to use.The OCMA-500 cuts solvent consumption by 20% compared with our previous products, reducing environmental impact. It also reduces the running costs.

Measurement principle : Solvent extraction, NDIR analysis (Infrared spectroscopy)
Measurement range : 0mg/l ~ 200mg/l dynamic ranging
Resolution : 0 to 99.9 mg/L; 0.1 mg/L & 100 to 200 mg/L; 1 mg/L
Repeatability :
0 to 9.9 mg/L; ± 0.2 mg/L ± 1 digit
10.0 to 99.9 mg/L; ± 2 mg/L ± 1 digit
100 to 200 mg/L; ± 4 mg/L ± 1 digit
*For standard liquids
Display Method : 3.5 inches, 320×240 dots Backlight Colour graphic LCD
Calibration Method : Zero, Span Calibration
Extraction Solvent : S-316 solvent (Do not use any other solvent than S-316)
Amount of test sample required : Sample water : Solvent = 2 : 1
Amount of extraction solvent required : 8 mL
Extraction Method : Built-in extractor
Ambient Operationg Temperature : 0 to 40 ℃ (non condensation)
Power supply : AC 100V to 240V ±10%, 50/60 Hz
Power consumption : AC 100V:Approx.60VA & AC 240V: Approx.90VA
External Dimensions : 200(W)×313(D)×342(H) mm
Mass : Approx. 7 kg
External Output : Output to an USB memory stick
