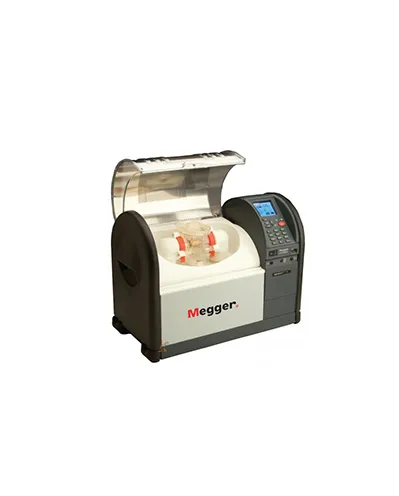

Megger portable 80 kV oil test sets are the lightest on the market ranging from 16 kg to 23.5 kg depending on model and configuration. They come complete with optional carry bag and transport case. The carry bag has pouches for electrode accessory pack, leads, quick user guide, paper roll etc. The units are mains powered with optional lead acid or NiMH batteries. In addition, an internal 12 V DC charger and vehicle adaptor cable is standard with either battery option.
Test voltage : OTS 80PB -40 to +40 kVrms Voltage resolution : 0.1 kV, ±1%, ±2 digits Programmed test sequences : ASTM D 1816-04, ASTM D 877A-02, ASTM D 877B-02 & IEC 60156-95 Vessels 400 ml (standard) 150 ml (option) : Nylon 12 chamber provides precision electrode alignment and adjustment wheels lock electrodes in position, option of 150 ml vessel for low volume oil samples Temperature sensor resolution : 1 ºC Power supply : Line voltage 85 to 265 VAC & Line frequency 50/60 Hz Batteries (option) : Lead acid 2 x 12 V 4 Ah, or NiMH 24 V 2 Ah Humidity : 80% RH at 40 ºC operation & 95% RH at 40 ºC storage Environmental Operating temperature : 0 ºC to +50 ºC Storage temperature : -30 ºC to +65 ºC Dimensions : OTS 80PB 520 mm x 380 mm x 250 mm Weight :OTS 80PB 20 kg (printer, no battery), 20.8 kg (printer, NiMH battery), 23.2 kg (printer, lead acid batteries)
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
